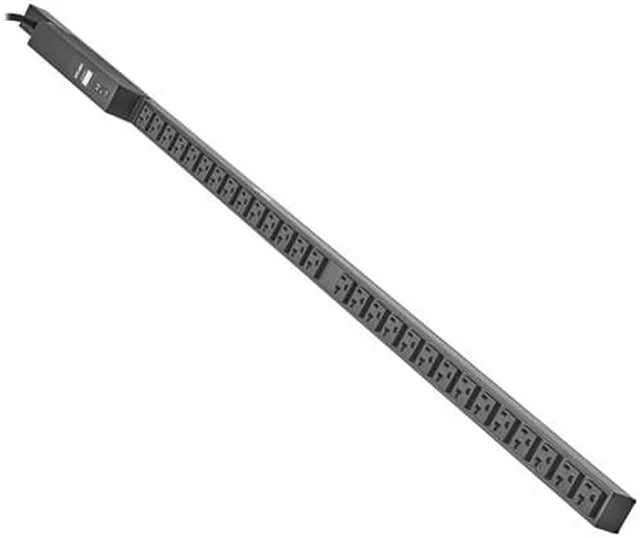

Eaton PDUMV20-ISO Tripp Lite Series 1.92kW Single-Phase Local Metered PDU with ISOBAR Surge Protection, 120V, 3840 Joules, 28 NEMA 5-15/20R Outlets, L5-20P Input, 15 ft. Cord, 0U Vertical

Name: Eaton PDUMV20-ISO Tripp Lite Series 1.92kW Single-Phase Local Metered PDU with ISOBAR Surge Protection, 120V, 3840 Joules, 28 NEMA 5-15/20R Outlets, L5-20P Input, 15 ft. Cord, 0U Vertical
Brand: Eaton
SKU: PDUMV20-ISO
Price: 372.6 USD
Availability: InStock

Part Number:

PDUMV20-ISO

4 pieces ready to ship - additional units ship in 7-10 business days.

Estimated shipping in 7–10 business days.

Ready to ship.

4 pieces ready to ship - additional units ship in 7-10 business days.

$372.60

USD + Applicable Tax

Eaton Tripp Lite Series 1.92kW Single-Phase Local Metered PDU with ISOBAR Surge Protection, 120V, 3840 Joules, 28 NEMA 5-15/20R Outlets, L5-20P Input, 15 ft. Cord, 0U Vertical - Metered - NEMA 5-20P, NEMA L5-20P - 28 x NEMA 5-15/20R - 120 V AC - 0U - Vertical - Wall-mountable - Rack

Local metered PDU ideal for telecom, security, A/V and other small network applications
Digital ammeter for on-site load monitoring helps prevent power overloads
3840 joules protect your valuable electronics against dangerous surges and spikes
28 NEMA 5-15/20R outlets distribute AC power to connected equipment
Flexible installation options include 0U rack, under counter and on wall
2-year limited warranty

General Information

Manufacturer	Eaton Corporation
Manufacturer Part Number	PDUMV20-ISO
Manufacturer Website Address	http://www.eaton.com
Brand Name	Tripp Lite series
Product Model	PDUMV20-ISO
Product Name	PDUMV20-ISO 28-Outlets PDU
Marketing Information	Single-Phase 120V PDU Distributes and Monitors Network-Grade Power to Multiple Loads This local metered PDU is an ideal unit for telecom, security, audio/video and a wide variety of general portable and stationary rack-mount applications. Recommended for network-grade IT environments, the PDUMV20-ISO provides real-time monitoring of load levels via its built-in digital current metering. A 15-foot (4.6-meter) cord with L5-20P input plug (5-20P adapter included) connects to your facility's AC power source, generator or protected UPS system to distribute power to connected loads. Digital Load Meter Helps Prevent Potentially Expensive Overloads The PDUMV20-ISO features 28 NEMA 5-15/20R outlets for delivering power to equipment. A digital ammeter reports the total input current in real time. Monitoring amperage helps ensure load levels remain well below maximum capacity with no danger of overload that could lead to costly downtime or damaged equipment. Maintaining proper load levels can keep your TCO (total cost of ownership) low. 3840 Joules per Load Bank Fight Back Against Unexpected Power Surges Protecting your valuable electronics is ISOBAR® network-grade AC surge and noise suppression. A 3840-joule surge protection rating defends your sensitive electronic components against even the strongest power surges, spikes and line noise. The PDUMV20-ISO covers full normal (H-N) and common (N-G/H-G) protection modes. A green LED confirms your connected equipment is protected. Up-to-Date Safety Features Protect Your Vital Equipment All outlets are protected by a resettable 20A circuit breaker that shuts down the PDU in the event of a power load to safeguard connected equipment. A transparent cover protects the lighted on/off switch to help prevent an accidental shutdown that could lead to costly downtime. Versatile Installation Options Give You Plenty of Choices The 0U PDU mounts vertically using the included hardware. Vertical 0U mounting reduces cable clutter and permits efficient airflow through the rack. You can also install the long-lasting all-metal housing on a wall, raceway or a similar flat surface.
Product Type	PDU

Technical Information

PDU Type	Metered
Phase	Single Phase
Plug/Connector Type	NEMA 5-20P
Plug/Connector Type	NEMA L5-20P
Receptacle Type	NEMA 5-15/20R
Receptacle Detail	28 x NEMA 5-15/20R
Protection Type	Surge Protection
Protection Type	Noise

Power Description

Input Voltage	120 V AC
Output Voltage	120 V AC
Power Rating (Watt)	1920 W
Input Current	16 A

Physical Characteristics

Color Family	Black
Product Color	Black
Mounting Orientation	Vertical
Mount Type	Wall-mountable
Form Factor	Rack
Rack Height	0U
Height	60.4" mm
Width	1.5" mm
Depth	3.1" mm
Weight (Approximate)	5.39 lb g

Miscellaneous

Package Contents	PDUMV20-ISO 28-Outlets PDU L5-20P To 5-20P Plug Adapter Mounting Hardware Owner's Manual
Country of Origin	Taiwan
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty

2 Year
