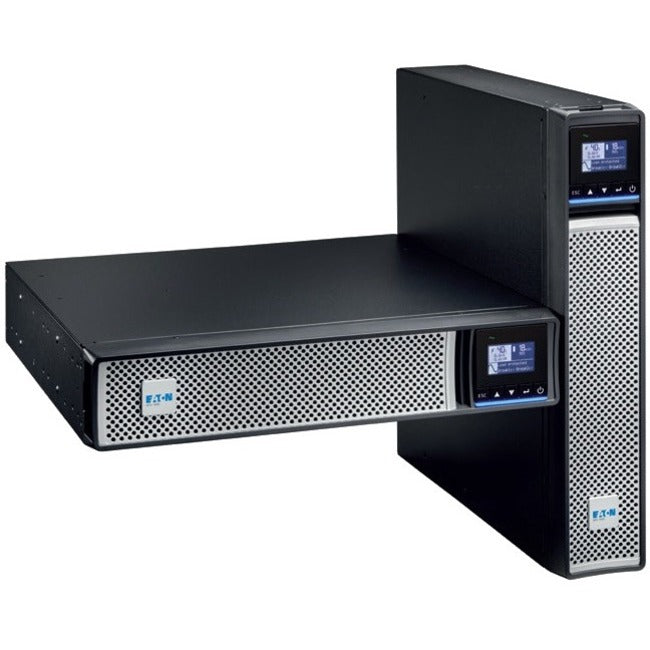

Eaton 5PX Gen2 UPS - 2U Rack/Tower - 230 V AC Input - 200 V AC, 208 V AC, 220 V AC, 230 V AC, 240 V AC Output - Single Phase - Serial Port - 8 x IEC 60320 C13 (10A), 2 x IEC 60320 C19 (16A) Receptacle(s)
- Experience higher efficiency with lower energy cost
- Prevent critical data loss by staying powered during a blackout with up to 3000 W load capacity
- 3000 VA load capacity provides sufficient backup during power failures
- Replaceable battery for reliable output for prolonged usage with maximum efficiency
- IEC 60320 C13 (10A) receptacle type offers maximum safety, convenience, and increased usability
- Single Phase phase for better reliability and ensure maximum productivity
- Line-interactive UPS with network application/usage to ensure maximum productivity with added feasibility
- 230 V AC input voltage for optimal performance with maximum usability
- 200 V AC output voltage for optimal performance with maximum feasibility
- Rack/Tower form factor allows hassle-free and easy usage with increased efficiency
General Information
| Manufacturer |
Eaton Corporation |
| Manufacturer Part Number |
5PX3000IRT2UG2 |
| Manufacturer Website Address |
http://www.eaton.com |
| Brand Name |
Eaton |
| Product Series |
5PX |
| Product Name |
5PX Gen2 UPS |
| Marketing Information |
Exceptional efficiency, manageability and energy metering capabilities for IT managers | Performance and efficiency
- Eaton 5PX Gen 2 provides Unity power factor (W=VA) capability. With 11% more power than other UPS it can protect more servers.
- Energy Star 2.0 certified, 5PX Gen2 offers best-in-class efficiency performance to reduce energy consumption and cooling costs.
- When operating in battery mode the 5PX provides a high-quality output signal for any sensitive equipment connected, such as active PFC (power factor corrected) servers.
- Each 5PX Gen2 battery configuration provides the best size/runtime ratio.
Management and Cybersecurity - Innovative graphical LCD display brings all operating information at first sight. It also enhances commissioning and configuration capabilities.
- 5PX Gen2 Netpack models are delivered with Eaton Gigabit network management card, which provides Dual cybersecurity certifications (UL 2900-1 & IEC 62443-4-2) and enables connection to Eaton Cyber Secured Monitoring solutions.
- Together with 5PX Gen2, Eaton Gigabit network management card allows both remote UPS settings and remote firmware upgrade to ensure easy deployment (fleet management) and reduced maintenance cost.
- 5PX Gen2 meters energy consumption right down to the managed outlet groups. kWh values can be monitored using the LCD or Eaton's Intelligent Power Software.
- Eaton's Intelligent Power Software seamlessly integrates with leading virtualization environments and cloud orchestration tools.
Availability and flexibility - 5PX Gen2 2200VA & 3000VA are available in RT2U format (optimized for rack mounting) or RT3U (for tower installation or short-depth racks). Pedestals and rail kits are included with all models.
- 5PX Gen2 load segment control enables prioritized shutdowns of non-essential equipment to maximize battery runtime for critical devices (2 groups).
- Eaton ABM® battery management technology uses a three- stage charging technique that optimizes battery health and extends lifetime by up to 50%.
- Up to 4 external hot-swappable battery modules can be added for longer power availability.
|
| Product Type |
Line-interactive UPS |
Technical Information
| Receptacle Type |
IEC 60320 C13 (10A) |
| Receptacle Type |
IEC 60320 C19 (16A) |
| Receptacle Detail |
8 x IEC 60320 C13 (10A) |
| Receptacle Detail |
2 x IEC 60320 C19 (16A) |
| Phase |
Single Phase |
| Application/Usage |
Network |
| Application/Usage |
Server |
| Application/Usage |
IT System |
| Application/Usage |
Virtual Platform |
| Application/Usage |
Switch |
| Application/Usage |
Router |
| Application/Usage |
Storage Device |
| Application/Usage |
Cloud Orchestration Tool |
Power Description
| Load Capacity (VA) |
3000 VA W |
| Load Capacity (Watt) |
3000 W |
| Input Voltage |
230 V AC |
| Input Voltage Range |
160 V - 294 V |
| Output Voltage |
200 V AC |
| Output Voltage |
208 V AC |
| Output Voltage |
220 V AC |
| Output Voltage |
230 V AC |
| Output Voltage |
240 V AC |
| Input Frequency |
70 Hz |
| Output Frequency |
60 Hz |
| Waveform Type |
Pure Sine Wave |
Interfaces/Ports
| Serial Port |
Yes |
| USB (HID Compliant) Port |
Yes |
Battery Information
| Hot Swappable |
Yes |
| Replaceable Battery |
Yes |
Environmental Conditions
| Maximum Operating Temperature |
104°F (40°C) °F |
Physical Characteristics
| Height |
3.37" mm |
| Width |
17.24" mm |
| Depth |
23.74" mm |
| Rack Height |
2U |
| Form Factor |
Rack/Tower |
| Weight (Approximate) |
69.89 lb g |
