Eaton EVMI1530X G4 EVMI1530X 42-Outlets PDU

Name: Eaton EVMI1530X G4 EVMI1530X 42-Outlets PDU
Brand: Eaton
SKU: EVMI1530X
Price: 1716.35 USD
Availability: InStock

Part Number:

EVMI1530X

4 pieces ready to ship - additional units ship in 7-10 business days.

Estimated shipping in 7–10 business days.

Ready to ship.

4 pieces ready to ship - additional units ship in 7-10 business days.

$1,716.35

USD + Applicable Tax

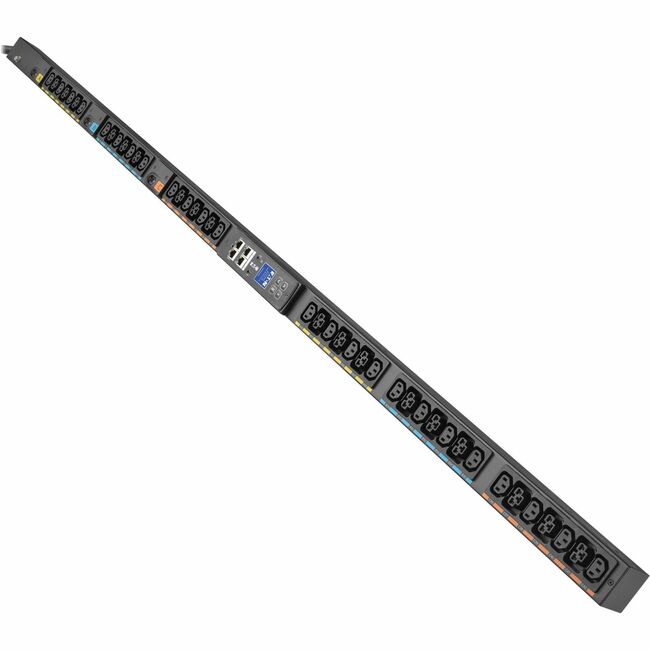

Eaton G4 EVMI1530X 42-Outlets PDU - Metered - NEMA L15-30P - 24 x IEC 60320 C13, 18 x IEC 60320 C39 - 230 V AC - Circuit Breaker - Network (RJ-45) - 10 ft Cord Length - 0U - Vertical/Toolless - Rack-mountable, Button Mount - Vertical

Embedded gigabit network module offers market-leading cybersecurity
42 outlets include 24 C13 and 18 universal C39, which accepts C14 and C20 plugs
Color-coded load banks with individual breakers per two sections keep connections organized
Toolless mounting buttons allow 0U vertical installation in your 42U rack
3-year limited warranty

General Information

Manufacturer	Eaton Corporation
Manufacturer Part Number	EVMI1530X
Manufacturer Website Address	http://www.eaton.com
Brand Name	Eaton
Product Series	G4
Product Model	EVMI1530X
Product Name	G4 EVMI1530X 42-Outlets PDU
Marketing Information	Features \| Three-Phase Metered Input PDU Ideal for Data Center Managers with Large-Scale Distributed IT The EVMI1530X G4 Rack PDU is ideal for streamlining PDU procurement and deployment within a 42U rack in an enterprise data center, colocation data center or distributed IT infrastructure. Equipped to meet even the most diverse data center rack power needs, the EVMI1530X delivers versatile, enterprise-quality power distribution. Market-Leading Cybersecurity Ensures Your Data Is Kept Safe Chain-of-trust encryption and secure firmware boot capability prevent the EVMI1530X PDU from being a cyberattack vulnerability point on a network. An embedded, hot-swappable gigabit network module (GNM) offers enhanced management and cybersecurity, including zero-trust architecture and zero-touch provisioning. The EVMI1530X is compatible with select Eaton Brightlayer Data Centers suite software solutions that enable extensive automation and remote management to shorten response times to power issues and ensure timely updates for stronger cybersecurity. Remote Management Saves Time and Money The GNM with multi-color screen supports performance management software for real-time reports, trend charts, dashboards and alerts that are prioritized by severity, as well as remote troubleshooting and automated responses during power events. The EVMI1530X is compatible with optional environmental sensors (sold separately) that provide alerts about temperature, humidity and dry-contact device connections. 42 Outlets Give You Plenty of Power Options The EVMI1530X features 24 C13 outlets, which accept C14 connectors, and 18 high-retention C39 combo outlets, which accept both C14 and C20 connectors, adding flexibility to deployments and reducing the quantity of PDUs you will need to purchase and install. The outlets are evenly distributed into six color-coded load banks to improve load balancing and organize connections in a crowded rack. Convenient Box-to-Rack Installation This EVMI1530X PDU features toolless mounting buttons that allow front- or side-facing rack installation, depending on your rack's layout and your power needs. The 10-foot power cord with L15-30 input connects to a compatible AC source. Low-profile circuit breakers are flush with the lightweight aluminum chassis, and the narrow two-inch width saves space within the rack for revenue-generating equipment. You can cascade up to 40 EVMI1530X models with each model maintaining its own individual IP address from a single network connection point.
Product Type	PDU

Technical Information

PDU Type	Metered
Phase	Three Phase
Plug/Connector Type	NEMA L15-30P
Receptacle Type	IEC 60320 C13
Receptacle Type	IEC 60320 C39
Receptacle Detail	24 x IEC 60320 C13
Receptacle Detail	18 x IEC 60320 C39
Protection Type	Circuit Breaker
Features	LCD Display

Power Description

Input Voltage	230 V AC
Output Voltage	208 V AC
Power Rating (VA)	8600 VA W
Power Rating (Watt)	8600 W
Input Current	30 A

Management

SNMP
Network Management Card

Interfaces/Ports

Network (RJ-45)

Yes

Physical Characteristics

Color Family	Black
Product Color	Black
Mounting Orientation	Vertical/Toolless
Mount Type	Rack-mountable
Mount Type	Button Mount
Form Factor	Vertical
Rack Height	0U
Cord Length	10 ft mm
Height	68.1" mm
Width	2.1" mm
Depth	2.1" mm
Weight (Approximate)	16.54 lb g

Environmental Conditions

Minimum Operating Temperature	32°F (0°C) °F
Maximum Operating Temperature	140°F (60°C) °F

Miscellaneous

Package Contents	G4 EVMI1530X 42-Outlets PDU Mounting Buttons
Application/Usage	Data Center
Application/Usage	IT Equipment
Country of Origin	Philippines
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty

3 Year
