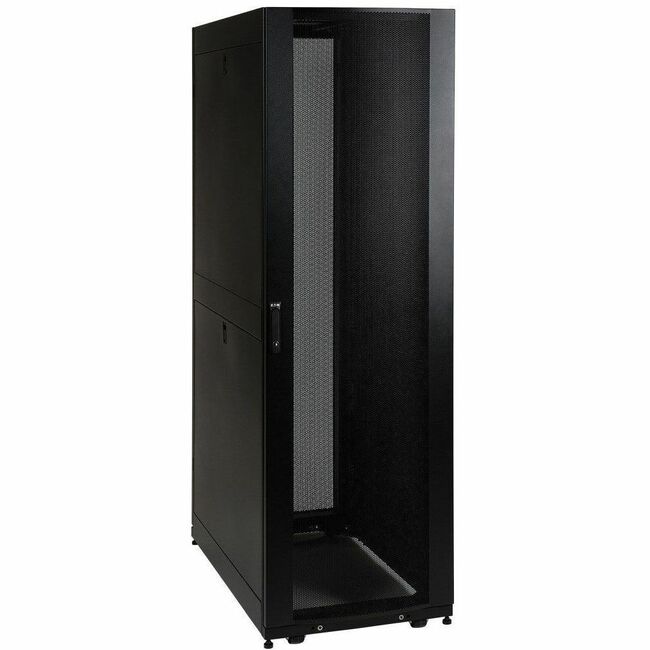

Eaton SR45UB Tripp Lite by Eaton 45U SmartRack Standard-Depth Server Rack Enclosure Cabinet with doors & side panels

Name: Eaton SR45UB Tripp Lite by Eaton 45U SmartRack Standard-Depth Server Rack Enclosure Cabinet with doors & side panels
Brand: Eaton
SKU: SR45UB
Price: 2642.53 USD
Availability: InStock

Part Number:

SR45UB

20 pieces ready to ship - additional units ship in 7-10 business days.

Estimated shipping in 7–10 business days.

Ready to ship.

20 pieces ready to ship - additional units ship in 7-10 business days.

$2,642.53

USD + Applicable Tax

Tripp Lite by Eaton 45U SmartRack Standard-Depth Server Rack Enclosure Cabinet with doors & side panels - 19" 45U

45U SmartRack enclosure with doors and side panels
4 interior vertical posts with unthreaded square hole openings
Standard 24" (600mm) width and 42" (1050mm) depth for optimizing floor space
Ships fully assembled
Massive front to rear ventilation capacity
3000 lb stationary / 2250 lb rolling load capacity
Locking, removable, reversible front and rear doors
Locking, removable side panels keyed alike with doors

General Information

Manufacturer	Eaton Corporation
Manufacturer Part Number	SR45UB
Manufacturer Website Address	http://www.eaton.com
Brand Name	Tripp Lite series
Product Line	SmartRack
Product Model	SR45UB
Product Name	45U SmartRack Premium Enclosure (Includes Doors and Side Panels)
Marketing Information	The SR45UB features a massive front-to-rear ventilation capacity that meets or exceeds server manufacturer requirements. Its integrated baying tabs make it easy to combine multiple enclosures in rows for data center applications. This enclosure is also compatible with hot-aisle/cold-aisle configurations. The SR45UB houses 3,000 pounds (1360.8 kilograms) of standard 19-inch rack equipment in 45U. Its front and rear pairs of vertical rails have square mounting holes that are adjustable in quarter-inch increments from four to 37 inches. Adjustment is quick and an easy-view depth index ensures consistent rail placement without requiring time-consuming measurements. Each rack space within the enclosure is numbered for ready reference. Two of the adjustable vertical mounting rails support toolless button-mount 0U installation of up to four compatible PDUs and cable managers. This feature makes it easier to route cabling to rack equipment and reduces cord clutter. With its locking, reversible, removable front and rear doors and locking, removable side panels, the SR45UB provides ultimate equipment safety. The side panels are half size for ease of removal and reinstallation. The split rear door design allows the enclosure to be placed closer to a wall. The SR45UB meets all requirements toward PCI DSS compliance. The top panel of the SR45UB is vented to help remove warm air from the enclosure and draw in cool air by convection. The top panel includes ports for cable routing and can be quickly removed without tools. To facilitate cable access, the SR45UB is open-bottom. All components of the SR45UB are grounded to the enclosure frame. Front and rear threaded grounding points are provided for connection to the facility earth ground. The removable front and rear doors feature quick-release ground wires. To simplify deployment, the SR45UB comes with preinstalled casters that enable it to be easily maneuvered into the desired location, where it can be secured by adjusting the preinstalled levelers. Note: The casters are intended for minor position adjustments and are not designed for moving the enclosure over long distances. As part of the SmartRack® family, the SR45UB is compatible with an extensive range of rack-mount accessories, enabling you to customize your solution to meet any requirement. More from the Manufacturer
Product Type	Rack Cabinet

Physical Characteristics

Color Family	Black
Product Color	Black
Dynamic/Rolling Weight Capacity	2250 lb g
Static/Stationary Weight Capacity	3000 lb g
Height	83.8" mm
Width	23.6" mm
Depth	43" mm
Rack Height	45U
Rack Width	19" mm
Weight (Approximate)	307 lb g

Miscellaneous

Package Contents	45U SmartRack Premium Enclosure (Includes Doors and Side Panels) 4 x Side Panels 4 x Side Panel Locks 50 x M6 Screws 50 x M6 Cage Nuts 50 x M6 Washers 2 x Door and Side Panel Keys Owner's Manual Stabilizer Plate Mounting Hardware Kit Baying Hardware Kit
Assembly Required	No
Country of Origin	China
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty

5 Year
