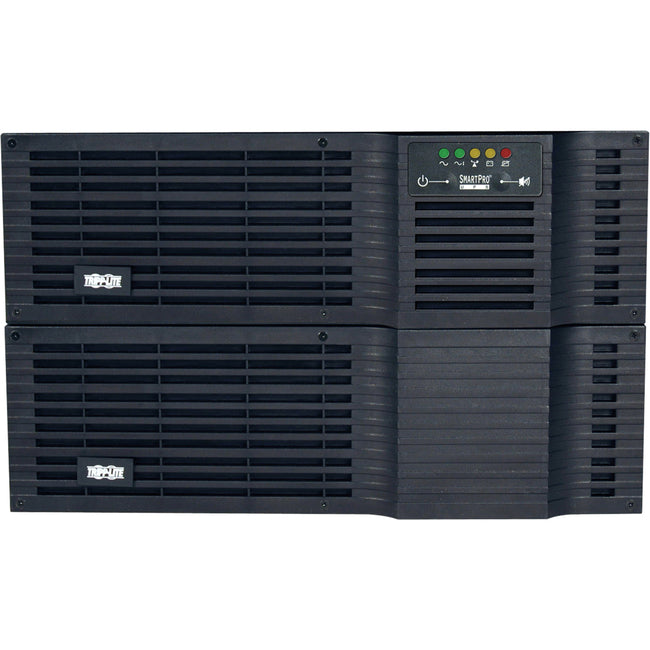

Eaton SMART5000RT3U UPS rackmount with 5kVA capacity, LCD display, USB and DB9 ports, 208V/120V pure sine wave output.

100% Genuine

Manufacturer Warranty

Fast US Shipping

Eaton SMART5000RT3U Tripp Lite by Eaton UPS Smart 5000VA 4000W Rackmount AVR 208V/120V Pure Sign Wave 5kVA USB DB9 6URM

Part Number:

SMART5000RT3U

2 pieces ready to ship - additional units ship in 7-10 business days.
Estimated shipping in 7–10 business days.
Estimated shipping in 7–10 business days.
Ready to ship.

2 pieces ready to ship - additional units ship in 7-10 business days.

$6,912.00

USD + Applicable Tax
Visa
Mastercard
American Express
PayPal
Shop Pay

Tripp Lite by Eaton UPS Smart 5000VA 4000W Rackmount AVR 208V/120V Pure Sign Wave 5kVA USB DB9 6URM - 5000VA/4000W - 16 Minute Full Load - 10 x NEMA 5-15R, 2 x NEMA 5-20R, 1 x NEMA L6-30R, 1 x NEMA L14-30R

  • 5kVA / 5000VA / 4000W line interactive 6U rack/tower UPS; Sine wave output
  • 208 & 120V output during brownouts to 151V and overvoltages to 260V
  • USB, Serial, EPO & optional SNMP/Web card monitoring options
  • Expandable runtime; 8 single-outlet switched output load banks
  • NEMA L6-30P input; 10 5-15R, 2 5-15/20R, 1 L6-30R & 1 L14-30R outlets

General Information

Manufacturer Eaton Corporation
Manufacturer Part Number SMART5000RT3U
Manufacturer Website Address http://www.eaton.com
Brand Name Tripp Lite series
Product Line SmartPro
Product Model SMART5000RT3U
Product Name SMART5000RT3U 5000 VA Rack/Tower Line Interactive UPS
Marketing Information

Tripp Lite's line-interactive SMART5000RT3U UPS System protects server, networking or telecommunications equipment from blackouts, voltage fluctuations and surges in a compact tower/rackmount housing. Large capacity 5000VA/4000W power module converts raw 208V AC input to fully regulated dual output 208/120 voltage for simultaneous protection of both high- and low-voltage equipment loads. True sine wave output at all times offers guaranteed compatibility with all equipment types. Includes 14 outlets, 8 of which can be individually reset via software interface to selectively reboot remote equipment or shed less critical loads to extend battery runtime for more critical equipment. Includes slot for internal SNMP/web card, plus two DB9 and two USB enhanced monitoring ports for unattended shutdown, remote control and monitoring of UPS system and power data. 2 Year Warranty standard. 3 Year Warranty with product registration.

More from the Manufacturer
Product Type Line-interactive UPS

Technical Information

Plug/Connector Type NEMA L6-30P
Receptacle Type NEMA 5-20R
Receptacle Type NEMA L14-30R
Receptacle Type NEMA 5-15R
Receptacle Type NEMA L6-30R
Receptacle Detail 2 x NEMA 5-20R
Receptacle Detail 1 x NEMA L14-30R
Receptacle Detail 10 x NEMA 5-15R
Receptacle Detail 1 x NEMA L6-30R
Cord Length 10 ft mm
Transfer Time 4 ms Second

Power Description

Load Capacity (VA) 5000 VA W
Load Capacity (Watt) 4000 W
Input Voltage 220 V AC
Output Voltage 208 V AC
Waveform Type Sine Wave

Management

Network Management SNMP Manageable
Alarm On Battery
Alarm Overload
Alarm Low Battery

Controls/Indicators

Status Indicators 5 front panel LEDs - Green 5 front panel LEDs - Green POWER LED, Green VOLTAGE CORRECTION LED, 3 color BATTERY CHARGE LED, 3 color OUTPUT LOAD LED, red BATTERY WARNING LED

Interfaces/Ports

USB Yes

Battery Information

Battery Chemistry Lead Acid
Backup/Run Time (Full Load) 16 Minute Second
Backup/Run Time (Half Load) 38 Minute Second
Battery Life 6 Year Second
Hot Swappable Yes
Typical Battery Recharge Time 4 Hour Second

Environmental Conditions

Maximum Operating Temperature 104°F (40°C) °F

Physical Characteristics

Height 3.50" mm
Width 17.25" mm
Depth 16.75" mm
Rack Height 6U
Weight (Approximate) 58.50 lb g

Miscellaneous

Package Contents
  • SMART5000RT3U UPS
  • SMART5000RT3U UPS System
  • BP48V60RT3U battery pack
  • PowerAlert Software and cabling
  • Mounting hardware
  • Instruction manual with warranty information
Country of Origin China

Warranty

Limited Warranty 3 Year
