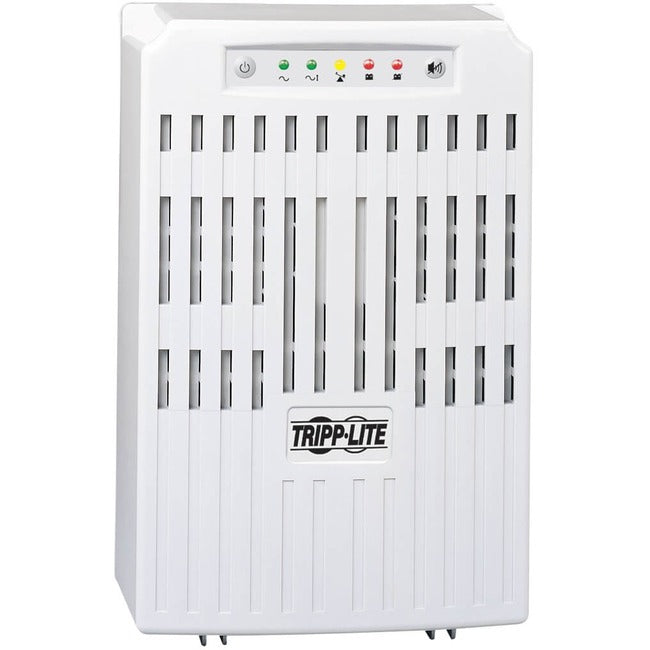

Eaton SMART2200VS Tripp Lite UPS tower with network card options, showing front view with control panel and connectivity ports.

100% Genuine

Manufacturer Warranty

Fast US Shipping

Eaton SMART2200VS Tripp Lite by Eaton UPS SmartPro 120V 2.2kVA 1.6kW Line-Interactive UPS Tower Network Card Options USB DB9 Serial

Part Number:

SMART2200VS

61 pieces ready to ship - additional units ship in 7-10 business days.
Estimated shipping in 7–10 business days.
Estimated shipping in 7–10 business days.
Ready to ship.

61 pieces ready to ship - additional units ship in 7-10 business days.

$1,809.64

USD + Applicable Tax
Visa
Mastercard
American Express
PayPal
Shop Pay

Tripp Lite by Eaton UPS SmartPro 120V 2.2kVA 1.6kW Line-Interactive UPS Tower Network Card Options USB DB9 Serial - 2200VA/1600W - 7 Minute Full Load - 7 x NEMA 5-15R, 2 x NEMA 5-20R

  • 2.2kVA / 2200VA line interactive tower UPS system
  • 120V nominal output during brownouts to 79V and overvoltages to 147V
  • Front panel status LEDs with load and battery capacity level display
  • USB, RS232, EPO and optional SNMP/Web card are available for simultaneous use
  • NEMA 5-20P input; 2 NEMA 5-15/20R & 7 5-15R outlets

General Information

Manufacturer Eaton Corporation
Manufacturer Part Number SMART2200VS
Manufacturer Website Address http://www.eaton.com
Brand Name Tripp Lite series
Product Line SmartPro
Product Name SmartPro SMART2200VS UPS
Marketing Information

Tripp Lite's SMART 2200VS intelligent, line interactive UPS protects server, networking and telecommunications equipment from blackouts, voltage fluctuations and transient surges. Small footprint, tower UPS system occupies only 106 square inches of floor space with a height of only 14.25 inches. Large capacity 2200 VA/ 1600 watt rated UPS system offers 7 minutes runtime at full load and 19 minutes at half load during power failures. Line interactive voltage regulation corrects brownouts as low as 79V and overvoltages as high as 147V to fully regulated 120V nominal output for smooth continuous operation of connected equipment. Includes a total of 9 outlets, 3 pairs of which can be individually powered off and back on via software interface to selectively reboot remote equipment or shed less critical loads to extend battery runtime for more critical loads. Includes 2 DB9 and 2 USB enhanced monitoring ports for unattended shutdown, remote control and monitoring of UPS system and power data. Ships in attractive gray color scheme. Compatible with Tripp Lite's PowerAlert and Watchdog service software.

More from the Manufacturer
Product Type Line-interactive UPS

Technical Information

Plug/Connector Type NEMA 5-20P
Receptacle Type NEMA 5-15R
Receptacle Type NEMA 5-20R
Receptacle Detail 7 x NEMA 5-15R
Receptacle Detail 2 x NEMA 5-20R
Cord Length 8 ft mm
Transfer Time 4 ms Second

Power Description

Load Capacity (VA) 2200 VA W
Load Capacity (Watt) 1600 W
Input Voltage 120 V AC
Output Voltage 120 V AC

Management

Network Management SNMP Manageable
Alarm On Battery
Alarm Overload
Alarm Low Battery

Controls/Indicators

Status Indicators Includes 5 front panel LEDs to indicate BATTERY CHARGE LEVEL, AC LINE POWER STATUS, VOLTAGE REGULATION STATUS, UPS LOAD LEVEL and BATTERY LOW / REPLACE information

Interfaces/Ports

USB Yes

Battery Information

Battery Chemistry Lead Acid
Backup/Run Time (Full Load) 7 Minute Second
Backup/Run Time (Half Load) 19 Minute Second
Battery Life 6 Year Second
Hot Swappable Yes
Typical Battery Recharge Time 4 Hour Second

Environmental Conditions

Maximum Operating Temperature 104°F (40°C) °F

Physical Characteristics

Height 14.25" mm
Width 9.25" mm
Depth 12" mm
Form Factor Tower
Weight (Approximate) 52.40 lb g

Miscellaneous

Package Contents
  • SmartPro SMART2200VS UPS
  • SMART 2200VS UPS System, PowerAlert Software and cabling, Warranty information, Instruction manual
Country of Origin China

Warranty

Limited Warranty 2 Year
