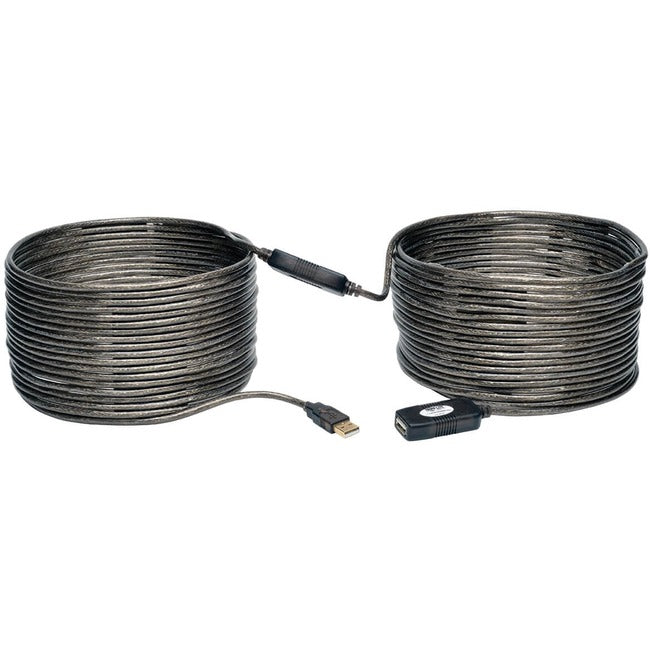

Eaton U026-20M Tripp Lite by Eaton 20M USB 2.0 Hi-Speed Active Extension Repeater Cable USB-A M/F 65ft 20 Meter

Name: Eaton U026-20M Tripp Lite by Eaton 20M USB 2.0 Hi-Speed Active Extension Repeater Cable USB-A M/F 65ft 20 Meter
Brand: Eaton
SKU: U026-20M
Price: 146.28 USD
Availability: InStock

Part Number:

U026-20M

2848 pieces ready to ship - additional units ship in 7-10 business days.

Estimated shipping in 7–10 business days.

Ready to ship.

2848 pieces ready to ship - additional units ship in 7-10 business days.

$146.28

USD + Applicable Tax

Tripp Lite by Eaton 20M USB 2.0 Hi-Speed Active Extension Repeater Cable USB-A M/F 65ft 20 Meter - 65.62 ft Maximum Operating Distance - Network (RJ-45)

Extends and boosts the signal to any USB device cable without signal loss
Built-in repeater maintains USB signal quality
Ideal for connecting USB devices beyond the 16-ft. USB specification
Full 480Mbps Transfer rate and backward compatible to USB 1.1
Plug and Play. Compatible with all major operating systems

General Information

Manufacturer	Eaton Corporation
Manufacturer Part Number	U026-20M
Manufacturer Website Address	http://www.eaton.com
Brand Name	Tripp Lite series
Product Model	U026-20M
Product Name	USB 2.0 Active Extension Repeater Cable (A-A M/F), 20M (65-ft.)
Marketing Information	Tripp Lite's U026-20M is a 20-meter (65 ft.) USB 2.0 active extension cable used to increase the length of a USB device cable beyond the 16.ft cable limitation without signal loss and potential performance problems. The U026-20M is a bus-powered extension cable with a built-in signal booster for regenerating the signal to achieve superior signal quality and data transmission. The overall cable length can be extended up to 131ft by daisy chaining up to 2 of active cables. Standard 6' 10' or 15' USB A-B cable to reach the desired distance. Meets or exceeds all USB 2.0 specifications and also supports faster data transfer for legacy USB 1.1 devices. Power capacity is up to 90mA of power to the connected device. (If more than 90mA is required, it will either (i) need to have its own power supply, or (ii) be plugged into a powered USB 2.0 hub (Tripp Lite U222-004-R). Features Maximum Extension Distance: Daisy-chain up to two 20m cables for a complete distance extension of up to 40m (131 ft.) Error-Free Signal Transfer: Supports error-free data transmission at the high speeds of all your USB 2.0 devices. Legacy USB 1.1 devices also get a speed boost with transfer speeds from 1.5 to 480 Mbps Universal Compatibility: The cable is compatible with all computers, devices and cables with USB A connectors. Backward compatible to USB 1.1 (12Mbps ) Power Capacity: The U026-20M provides up to 90mA of power to the connected device. If your device requires more than 90mA, it will either (i) need its own power supply, or (ii) be plugged into a powered USB 2.0 hub (such as Tripp Lite U222-004-R) Premium Cabling: Premium double-shielded foil-and-braid cable provides maximum EMI/RFI protection and superior signal quality Gold-Plated Connectors: The U026-20M features gold-plated USB A connectors with gold-plated copper contacts to ensure excellent conductivity The connectors feature integral strain relief for durability and long life Signal Booster: The built-in signal booster regenerates a USB signal for high quality and long extension distances RoHS Compliance: The U026-20M is compliant with RoHS standards, reflecting Tripp Lite's commitment to environmental responsibility Plug and Play Convenience: no software to load More from the Manufacturer
Product Type	Data Transfer Cable

Technical Information

Cable Type	USB
Cable Characteristic	Extension Cable
Cable Length	65.60 ft mm
Connector Type on First End	USB 2.0 Type A - Male
Connector on First End Details	1 x USB 2.0 Type A - Male
Connector Type on Second End	USB 2.0 Type A - Female
Connector on Second End Details	1 x USB 2.0 Type A - Female
Connector Plating	Gold
Device Supported	USB Hub
Data Transfer Rate	480 Mbit/s Bps
Features	Active
Features	Strain Relief

Physical Characteristics

Color Family	Black
Product Color	Black

Miscellaneous

Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Country of Origin	China

Warranty

Limited Warranty

3 Year
