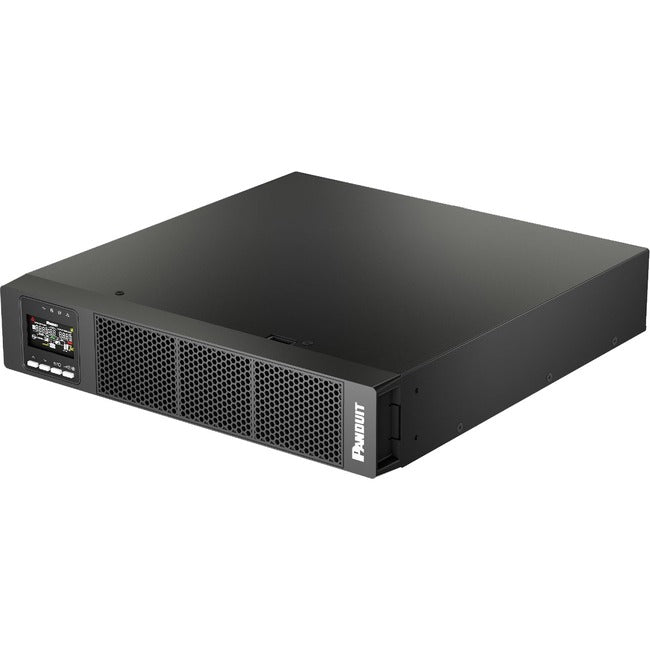

Panduit Corp U02N11L Panduit SmartZone UPS 1-3kVA Lithium Ion

Name: Panduit Corp U02N11L Panduit SmartZone UPS 1-3kVA Lithium Ion
Brand: Panduit Corp
SKU: U02N11L
Price: 1942.76 USD
Availability: InStock

Part Number:

U02N11L

6 pieces ready to ship - additional units ship in 7-10 business days.

Estimated shipping in 7–10 business days.

Ready to ship.

6 pieces ready to ship - additional units ship in 7-10 business days.

$1,942.76

USD + Applicable Tax

Panduit SmartZone UPS 1-3kVA Lithium Ion - 2U Compact, Tower/Rack Convertible - AVR - 4 Hour Recharge - 7.50 Minute Stand-by - 120 V AC Input - 100 V AC, 110 V AC, 115 V AC, 120 V AC, 125 V AC Output - Single Phase - Serial Port - 6 x NEMA 5-15R Receptacle(s)

Experience higher efficiency with lower energy cost
Keep your sensitive devices powered with a backup of up to 7.50 minute at full load
Prevent critical data loss by staying powered during a blackout with up to 1350 W load capacity
1500 VA load capacity provides sufficient backup during power failures
Overload protection feature usually operates on an inverse time curve where the stable time becomes less as the current increases
4 Hour typical battery recharge time to allow uninterrupted usage without requiring power outlet
Replaceable battery for optimal performance with maximum charged dependability
Lithium-Ion (LiFePO4) battery chemistry to better suit your requirements with maximum productivity
NEMA 5-15P plug/connector type for maximum usability with added reliability
NEMA 5-15R receptacle type offers ease of operation with maximum efficiency

General Information

Manufacturer	PANDUIT CORP
Manufacturer Part Number	U02N11L
Manufacturer Website Address	http://www.panduit.com
Brand Name	Panduit
Product Model	U02N11L
Product Name	SmartZone UPS 1-3kVA Lithium Ion
Marketing Information	The Panduit®SmartZone™Intelligent Rack UPS with compact, high capacity, and long life Lithium Ion battery, 1-3kVA single phase 120 V Line-Interactive unit and 230 V unit with pure Online Double Conversion system that delivers highly efficient and reliable power protection and backup power for your computer IT equipment. With excellent electrical performance, enhanced intelligent monitoring and network functions and complying with EMC and safety standards to meet the continually growing power demands of Data Center, Enterprise and Edge IT equipment.
Product Type	Line-interactive UPS

Technical Information

AVR	Yes
Plug/Connector Type	NEMA 5-15P
Receptacle Type	NEMA 5-15R
Receptacle Detail	6 x NEMA 5-15R
Overload Protection	Yes
Transfer Time	6 ms Second
Phase	Single Phase
Application/Usage	Computer
Application/Usage	IT Equipment
Application/Usage	Data Center
Application/Usage	Edge Computing
Application/Usage	Enterprise

Power Description

Load Capacity (VA)	1500 VA W
Load Capacity (Watt)	1350 W
Input Voltage	120 V AC
Input Voltage Range	100 V AC - 125 V AC
Output Voltage	100 V AC
Output Voltage	110 V AC
Output Voltage	115 V AC
Output Voltage	120 V AC
Output Voltage	125 V AC
Input Frequency	60 Hz
Output Frequency	60 Hz
Waveform Type	Pure Sine Wave

Controls/Indicators

Status Indicators

LCD Display

Interfaces/Ports

Serial Port	Yes
EPO Port	Yes
USB (HID Compliant) Port	Yes

Battery Information

DC System Voltage	48 V DC
Battery Characteristics	Hot-swappable
Battery Chemistry	Lithium-Ion (LiFePO4)
Backup/Run Time (Full Load)	7.50 Minute Second
Backup/Run Time (Half Load)	19 Minute Second
Typical Battery Recharge Time	4 Hour Second
Replaceable Battery	Yes

Environmental Conditions

Maximum Operating Elevation	9842.52 ft mm
Storage Temperature	-13°F (-25°C) - 131°F (55°C) °F
Maximum Operating Temperature	104°F (40°C) °F
Sound Emission	55 dB
Thermal Dissipation	41.62 W

Physical Characteristics

Product Color	Black
Height	3.41" mm
Width	17.32" mm
Depth	18.11" mm
Rack Height	2U
Form Factor	Compact
Form Factor	Tower/Rack Convertible
Weight (Approximate)	37.70 lb g

Miscellaneous

Energy Star	Yes
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Environmental Compliance	Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)

Warranty

Limited Warranty

5 Year
