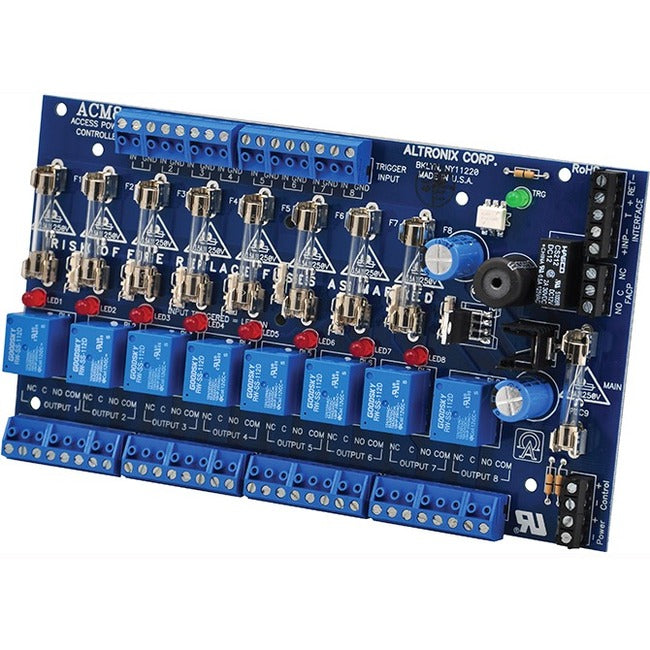

Strategic Sourcing ACM8 Altronix ACM8 Power Controller

100% Genuine

Manufacturer Warranty

Fast US Shipping

Strategic Sourcing ACM8 Altronix ACM8 Power Controller

Part Number:

ACM8

66 pieces ready to ship - additional units ship in 7-10 business days.
Estimated shipping in 7–10 business days.
Estimated shipping in 7–10 business days.
Ready to ship.

66 pieces ready to ship - additional units ship in 7-10 business days.

$114.09

USD + Applicable Tax
Visa
Mastercard
American Express
PayPal
Shop Pay

Altronix ACM8 Power Controller - 0.8" Height x 8" Width x 4" Depth - 1

  • 8 Output Access Power Controller.
  • Converts (1) 12 to 24 volt AC or DC input into (8) fused power outputs.
  • Individually selectable Fail-Safe/Fail-Secure outputs or dry form "C" contacts.
  • Fire alarm disconnect is selectable by output.
  • UL and cUL listed.

General Information

Manufacturer Altronix Corporation
Manufacturer Part Number ACM8
Manufacturer Website Address http://www.altronix.com
Brand Name Altronix
Product Model ACM8
Product Name ACM8 Power Controller
Marketing Information

ACM8 unit converts one 12 to 24 volt AC or DC input into eight independently controlled fuse protected outputs. These power outputs can be converted to dry form "C" contacts. Outputs are activated by an open collector sink or normally open (NO) dry trigger input from an Access Control System, Card Reader, Keypad, Push Button, PIR, etc. The unit will route power to a variety of access control hardware devices including Mag Locks, Electric Strikes, Magnetic Door Holders, etc. Outputs will operate in both Fail-Safe and/or Fail-Secure modes. The unit is designed to be powered by one common power source which will provide power for both the board operation and locking devices, or two totally independent power sources, one providing power for board operation and the other for lock / accessory power. The FACP Interface enables Emergency Egress, Alarm Monitoring, or may be used to trigger other auxiliary devices. The fire alarm disconnect feature is individually selectable for any or all of the eight outputs.
Packaged Quantity 1
Product Type Power Controller

Physical Characteristics

Form Factor Wall Mountable
Height 0.8" mm
Width 8" mm
Depth 4" mm
Weight (Approximate) 11.20 oz g

Miscellaneous

Application/Usage Card Reader
Application/Usage Keypad
Application/Usage Electric Strike
Compatibility
  • Signal Equipment

Access Control Devices:

  • Mag Locks
  • Electric Strikes
  • Magnetic Door Holders
Country of Origin United States
Environmentally Friendly Yes
Environmental Compliance Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty Lifetime
