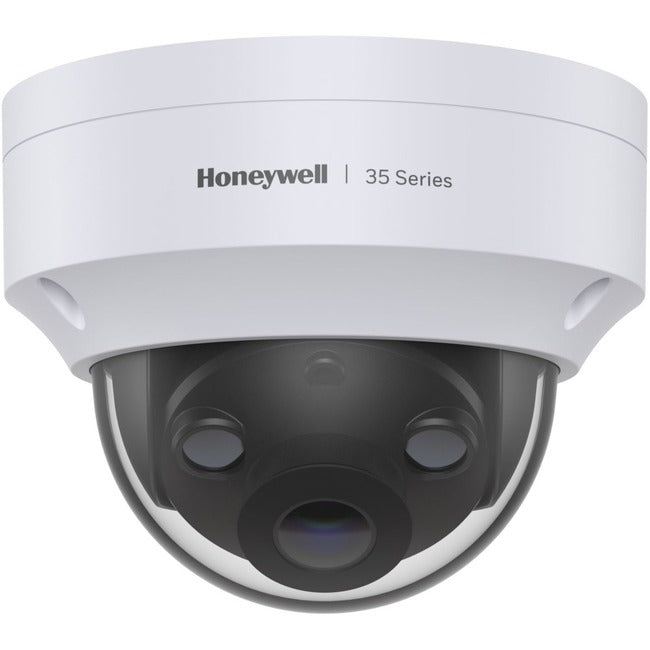

Honeywell HC35W45R3 5 Megapixel Network Camera - Color - Mini Dome - Signal White - TAA Compliant - 131.23 ft Infrared Night Vision - H.265 (HEVC), H.264, MJPEG - 2592 x 1944 - 2.80 mm Fixed Lens - 30 fps - CMOS - Junction Box Mount, Ceiling Mount, Wall Mount, Pole Mount, Corner Mount - IK10 - IP66, IP67 - Water Proof, Dust Proof
- For remote surveillance needs, this network camera is best suited
- Up to 2592 x 1944 resolution for surveillance in real-time
- CMOS sensor is cheaper as compare to CCD and consumes less power while producing better HD videos
- 2.80 mm maximum focal length provides incredible detail and how effective is your network camera
- f/2.0 maximum aperture for productive capturing according to focal length and lighting conditions
- Up to 131.23 ft of night vision
- Infrared night vision type effectively captures visible footage without requiring any external sources of light
- Fixed lens type is ideal for indoor video surveillance where light levels are constant and unchanged
- DC power source type for your network camera provides maximum energy feasibility and added surveillance productivity
- Junction Box Mount mount type is reliable and allows trouble-free and easy usage
General Information
| Manufacturer |
Honeywell International, Inc |
| Manufacturer Part Number |
HC35W45R3 |
| Manufacturer Website Address |
http://www.honeywell.com |
| Brand Name |
Honeywell |
| Product Series |
35 |
| Product Model |
HC35W45R3 |
| Product Name |
3MP/5MP/8MP IP WDR IR Rugged Mini Dome Camera |
| Marketing Information |
The 35 Series AI IP cameras offer exceptional picture clarity even in low light conditions and have a higher resolution IR camera to cover larger areas both day and night. These cameras include smart motion detection based on humans and vehicles to reduce false alarms and support audio and alarm interface for local alarm integration. They feature flexible system integration, easy installation, and secure data transmission to reduce regulatory compliance, installation and operating costs and increase productivity and efficiency. Features & Benefits: - Fully NDAA compliant camera containing no content or material from any companies or their subsidiaries prohibited under US National Defense Authorization Act (NDAA) Section 889
- Resolutions ranging from 2 MP (2592x1944) up to 8 MP (3840x2160)
- A wide range of form factors, lenses, zoom and mounting options including micro dome, rugged dome, ball, bullet and speed dome (PTZ)
- True day/night provides vivid color images by day and clear black and white images at night using a removable IR cut filter
- Excellent low-light performance with 2D/3D noise reduction, saving storage and bandwidth together with smart codec
- True WDR (120 dB) ensures glare-free images
- ONVIF Profile S, G, T compliant
- Smart IR Technology provides even distribution of IR LEDs in dimly lit or nighttime scenes
- Water/dust proof (IP66/IP67) and IK10 (model dependent)
- Stream encryption - camera to MAXPRO and Series 35 NVRs under AES256 providing secure data integrity and privacy
- People counting, intrusion, loitering and smart motion detection smart analytics built in to increase situational awareness and reduce false alarms
- Remote configuration, motorized zoom adjustments and auto focus via web client or from the NVR
- Multiple language GUI
|
| Product Type |
Network Camera |
Technical Information
| HD Recording |
Yes |
| Night Vision |
Yes |
| Night Vision Distance |
131.23 ft mm |
| Night Vision Type |
Infrared |
Display & Graphics
| Image Sensor Type |
CMOS |
| Color Supported |
Color |
| Field of View |
H:93°, V:68° |
| Effective Camera Resolution |
5 Megapixel |
Video
| Video Formats |
H.265 (HEVC) |
| Video Formats |
H.264 |
| Video Formats |
MJPEG |
| Maximum Video Resolution |
2592 x 1944 |
| Maximum Frame Rate |
30 fps |
| Video Signal Format |
NTSC |
| Video Signal Format |
PAL |
Lens
| Lens Type |
Fixed |
| Maximum Focal Length |
2.80 mm |
| Lens Included |
Yes |
| Maximum Aperture |
f/2.0 |
Exposure
| Shortest Shutter Speed |
1/32000 Second |
| Longest Shutter Speed |
1/8 Second |
Network & Communication
| Connectivity Technology |
Wired |
| Remote Management |
Yes |
Storage
Interfaces/Ports
Power Description
| Input Voltage |
12 V DC |
| Power Source Type |
DC |
| Power Source Type |
PoE |
Physical Characteristics
| Color Family |
White |
| Product Color |
Signal White |
| Mount Type |
Junction Box Mount |
| Mount Type |
Ceiling Mount |
| Mount Type |
Wall Mount |
| Mount Type |
Pole Mount |
| Mount Type |
Corner Mount |
| Form Factor |
Mini Dome |
| Durability |
Water Proof |
| Durability |
Dust Proof |
| Diameter |
4.3" mm |
| Weight (Approximate) |
1.23 lb g |
Environmental Conditions
| Minimum Operating Temperature |
-40°F (-40°C) °F |
| Maximum Operating Temperature |
140°F (60°C) °F |
| Maximum Operating Humidity |
90% |
Miscellaneous
| Features |
SD Card Local Storage |
| Features |
Wide Dynamic Range |
| Features |
Defog |
| Features |
2D Noise Reduction |
| Features |
3D Noise Reduction |
| Features |
Gain Control |
| Features |
Automatic White Balance |
| Features |
Back Light Compensation (BLC) |
| Features |
Highlight Compensation (HLC) |
| Features |
Rugged Design |
| Impact Protection Rating |
IK10 |
| Ingress Protection Rating |
IP66 |
| Ingress Protection Rating |
IP67 |
| Country of Origin |
Vietnam |
| TAA Compliant |
Yes |
| Environmentally Friendly |
Yes |
| Environmental Compliance |
Restriction of Hazardous Substances (RoHS) |
