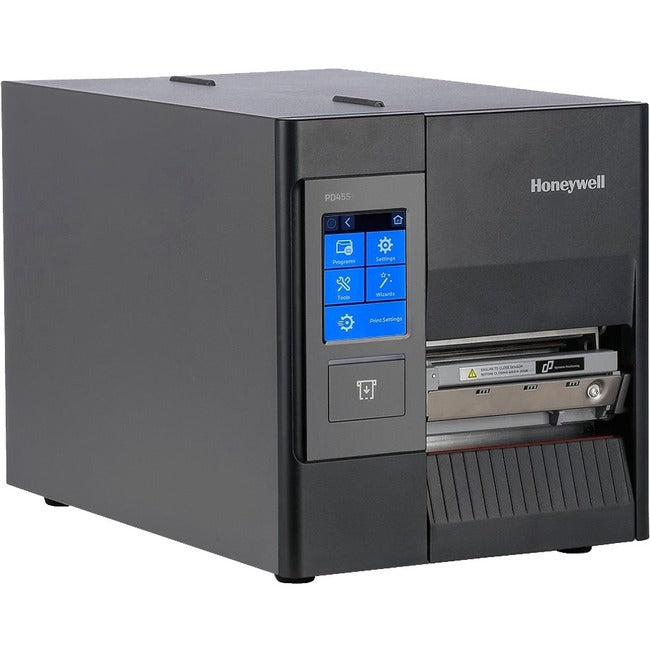

Honeywell PD45S Industrial, Retail, Healthcare, Manufacturing, Transportation & Logistic Thermal Transfer Printer - Monochrome - Label Print - Fast Ethernet - USB - USB Host - Serial - 15.75" Print Length x 4.25" Print Width - 9.84 in/s Mono - 203 dpi - 4.49" Label Width - ZPL II, ZSim2, IPL, DPL, Direct Protocol (DP), Fingerprint, FP, ZPL Emulation - For PC
- Use Thermal Transfer Printer for their versatility and compact design, as well as their high-resolution and durable printing capabilities
- 203 maximum print resolution (dpi) for better reliance and added usability
- The printer is capable of printing sharp and detailed monochrome documents quickly
- Enjoy the optimal performance in today's on-demand labeling applications
- Optimize your workflows by sharing the resources of the printer via Ethernet connectivity
- 4.49" maximum label width for your convenience and feasible usability
- Supports label media type for dependable, efficient results with maximum productivity
- Thermal Transfer Printer with industrial application/usage provides reliable, feasible printing solution
- Ergonomic feature for maximum productivity with added dependability
General Information
| Manufacturer |
Honeywell International, Inc |
| Manufacturer Part Number |
PD45S0C0010000200 |
| Manufacturer Website Address |
http://www.honeywell.com |
| Brand Name |
Honeywell |
| Product Model |
PD45S |
| Product Name |
Industrial Label Printer |
| Marketing Information |
Uniquely designed using minimum internal mechanical parts and an all-metallic frame structure, PD45S is sturdy and durable. This gives our printer a tough, compact, and sleek appearance, suitable for use in a wide range of settings & applications.
The PD45S runs on Arm Cortex-A7 / 800Mhz processor, 128M memory and 128M DDR3 SDRAM. It features a sophisticated industrial print head which supports both direct thermal and thermal transfer printing modes. Honeywell's patented dual sensor positioning technology supports a dynamic positioning function that ensures a minimum label height of 5mm and vertical position accuracy of 0.5mm. Two sets of adjustable pressure bars and double media guides ensures accurate paper feeding and help to avoid ribbon wrinkles & printing dirt.
Thanks to a very ergonomic design, the print head can be easily switched out and replaced. The front sensor that ensures accurate printing can also be easily removed to facilitate cleaning and replacement of the rubber roller. The PD45S supports multiple printer command languages such as FP/DP/IPL/ZPL/DPL, one-key installation of printer driver and easy windows configuration.
The PD45S comes with a rich selection of accessories and supports wireless network interface card, parallel interface card, labeling machine interface card, industrial GPIO and serial interface card. It also has peeling, rewinding and cutting assemblies to cope with a wide range of application scenarios. |
| Product Type |
Thermal Transfer Printer |
Technical Information
| Recommended Use |
Label Print |
| Print Color Capability |
Monochrome |
| Maximum Mono Print Speed |
9.84 in/s mm/s |
| Maximum Print Resolution (dpi) |
203 |
| Maximum Print Length |
15.75" mm |
| Maximum Print Width |
4.25" mm |
| Barcode Symbology Supported |
1D |
| Barcode Symbology Supported |
2D |
| Barcode Symbology Supported |
UPC/EAN Shipping Container |
| Barcode Symbology Supported |
UCC/EAN 128 Serial Shipping Container |
| Barcode Symbology Supported |
MH10.8 |
| Barcode Symbology Supported |
AIAG |
| Barcode Symbology Supported |
OGMARS |
| Barcode Symbology Supported |
POSTNET |
| Barcode Symbology Supported |
HIBCC |
| Barcode Symbology Supported |
ISBT-128 |
| Barcode Symbology Supported |
GM1724 |
| Application/Usage |
Industrial |
| Application/Usage |
Retail |
| Application/Usage |
Healthcare |
| Application/Usage |
Manufacturing |
| Application/Usage |
Transportation & Logistic |
| Features |
Ergonomic |
| Features |
Compact |
| Features |
Rugged |
| Features |
LCD Display |
Interfaces/Ports
| USB Host |
Yes |
| Serial Port |
Yes |
| USB |
Yes |
Network & Communication
| Network Ready |
Yes |
| Ethernet |
Yes |
| Ethernet Technology |
Fast Ethernet |
Media Types & Handling
| Media Type |
Label |
| Media Type |
Tag |
| Media Type |
Notch |
| Media Type |
Continuous Label |
| Media Type |
Continuous Paper |
| Media Sensor |
Black Mark Sensor |
| Media Sensor |
Gap Sensor |
| Media Thickness |
10 mil mm |
| Maximum Roll Diameter |
3.15" mm |
| Maximum Label Width |
4.49" mm |
Fonts & Emulation
| Language Emulation |
ZPL II |
| Language Emulation |
ZSim2 |
| Language Emulation |
IPL |
| Language Emulation |
DPL |
| Language Emulation |
Direct Protocol (DP) |
| Language Emulation |
Fingerprint |
| Language Emulation |
FP |
| Language Emulation |
ZPL |
Power Description
Environmental Conditions
| Operating Temperature |
41°F (5°C) - 104°F (40°C) °F |
| Operating Relative Humidity |
20% - 85% |
| Storage Temperature |
-4°F (-20°C) - 158°F (70°C) °F |
Physical Characteristics
| Height |
10.6" mm |
| Width |
9.8" mm |
| Depth |
17.2" mm |
| Weight (Approximate) |
23.85 lb g |
Miscellaneous
| Optional Connectivity |
Wireless LAN |
| Platform Supported |
PC |
