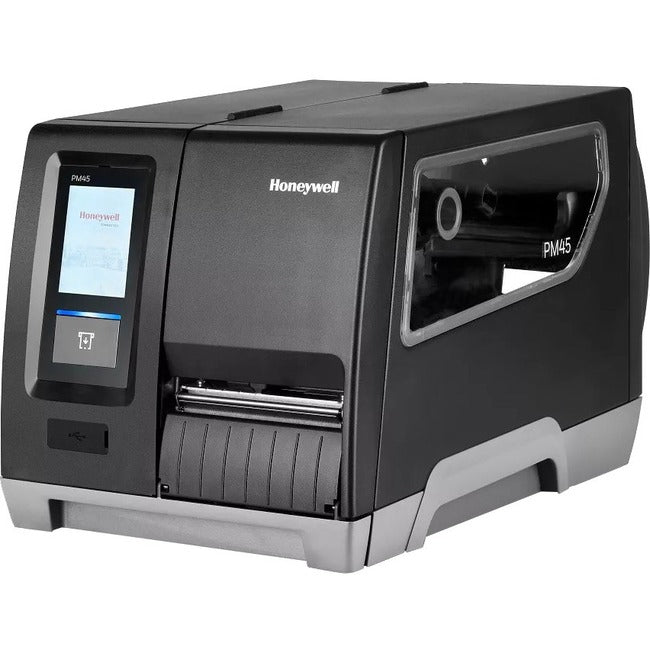

Honeywell PM45A Industrial Thermal Transfer Printer - Monochrome - Label Print - Gigabit Ethernet - Wireless LAN - Display Screen - 47.20" Print Length x 4.09" Print Width - 9.84 in/s Mono - 406 dpi - 4.49" Label Width - Fingerprint, IPL, ZSim2, ZPL II, DPL, XML, Direct Protocol (DP) Emulation - For PC
- Use Thermal Transfer Printer for their versatility and compact design, as well as their high-resolution and durable printing capabilities
- 406 maximum print resolution (dpi) for better reliance and added usability
- The printer is capable of printing sharp and detailed monochrome documents quickly
- Enjoy the optimal performance in today's on-demand labeling applications
- Save time and money for your business by using one printer for all your employees
- Enjoy the freedom of wireless connectivity. With Wi-Fi, you will get things done faster.
- 4.49" maximum label width for dependable, desired results
- Supports gap media type for better reliance and maximum usability
- Thermal Transfer Printer with industrial application/usage provides reliable, feasible printing solution
- Rugged feature for maximum efficiency and convenience
General Information
| Manufacturer |
Honeywell International, Inc |
| Manufacturer Part Number |
PM45A10000000400 |
| Manufacturer Website Address |
http://www.honeywell.com |
| Brand Name |
Honeywell |
| Product Series |
PM45 |
| Product Model |
PM45A |
| Product Name |
PM45A Thermal Transfer Printer |
| Marketing Information |
Enterprises today are facing increasing challenges on production flexibility, inventory turnover, and cost control. The Honeywell PM45 industrial printer is designed to give businesses the flexibility and precision for high-volume printing. The PM45 printer's track-and-trace functionality is aimed at improving print efficiency and supply chain transparency within a variety of industries, including food and beverage, pharmaceuticals, manufacturing, warehouse, and distribution center management.
Built on the Honeywell print platform, the durable PM45 printer offers print speeds of up to 14 ips. With print registration of up to +/-0.5 mm, the PM45 printer can ensure high-quality prints for barcodes, texts, and images, even on small electronic components and medical device labels.
As a highly connected industrial printer, the PM45 is packed with enhanced WWAN connectivity to enable deployment with minimal limitation from site network topology. The PM45 printer's versatility allows the user to incorporate RFID, parallel, industrial, and applicator interfaces to address unpredictable future business needs. To help your transformation to intelligent manufacturing and supply chain management, the PM45 printer supports variable network protocols and multiple print languages to enable easy integration into your system, whether it is cloud-based or on a local server.
Embedded with Honeywell's Smart Parse software, the PM45 allows for quick position changes, sizing of objects and barcodes, or font type on labels, without the need for backend system changes or programming skills. With Honeywell's Operational Intelligence software, users can remotely manage and monitor the PM45 printer's diagnostics and output performance. The PM45 supports a wide range of media - including ink-in and ink-out ribbons with a 1-inch core size - enhancing the time between media resupplies.
The PM45 printer is an ideal replacement for existing Honeywell or mixed printers, especially with Honeywell's firmware platform supporting multiple print languages. A rugged, all-metal print mechanism, easy printhead, and tool-free platen roller replacement helps minimize downtime and maintenance needs. |
| Product Type |
Thermal Transfer Printer |
Technical Information
| Recommended Use |
Label Print |
| Print Color Capability |
Monochrome |
| Maximum Mono Print Speed |
9.84 in/s mm/s |
| Maximum Print Resolution (dpi) |
406 |
| Maximum Print Length |
47.20" mm |
| Maximum Print Width |
4.09" mm |
| Barcode Symbology Supported |
1D |
| Barcode Symbology Supported |
2D |
| Barcode Symbology Supported |
UPC/EAN Shipping Container |
| Barcode Symbology Supported |
UCC/EAN 128 Serial Shipping Container |
| Barcode Symbology Supported |
POSTNET |
| Barcode Symbology Supported |
HIBCC |
| Barcode Symbology Supported |
ISBT-128 |
| Barcode Symbology Supported |
GM1724 |
| Application/Usage |
Industrial |
| Features |
Rugged |
Memory
| Standard Memory |
256 MB Byte |
Network & Communication
| Network Ready |
Yes |
| Ethernet |
Yes |
| Ethernet Technology |
Gigabit Ethernet |
| Wireless LAN |
Yes |
| Wireless LAN Standard |
IEEE 802.11a/ac/b/g/n |
Display & Graphics
Media Types & Handling
| Media Type |
Gap |
| Media Type |
Notch |
| Media Type |
Black Mark |
| Media Type |
Continuous Label |
| Media Type |
Label |
| Media Sensor |
Label Taken Sensor |
| Maximum Roll Diameter |
8.39" mm |
| Maximum Label Width |
4.49" mm |
Fonts & Emulation
| Language Emulation |
Fingerprint |
| Language Emulation |
IPL |
| Language Emulation |
ZSim2 |
| Language Emulation |
ZPL II |
| Language Emulation |
DPL |
| Language Emulation |
XML |
| Language Emulation |
Direct Protocol (DP) |
Power Description
Environmental Conditions
| Operating Temperature |
41°F (5°C) - 104°F (40°C) °F |
| Operating Relative Humidity |
20% - 85% |
| Storage Temperature |
-4°F (-20°C) - 158°F (70°C) °F |
| Storage Relative Humidity |
5% - 90% |
Physical Characteristics
| Height |
11.6" mm |
| Width |
11.2" mm |
| Depth |
19" mm |
| Weight (Approximate) |
29.10 lb g |
Miscellaneous
| Platform Supported |
PC |
| Energy Star |
Yes |
