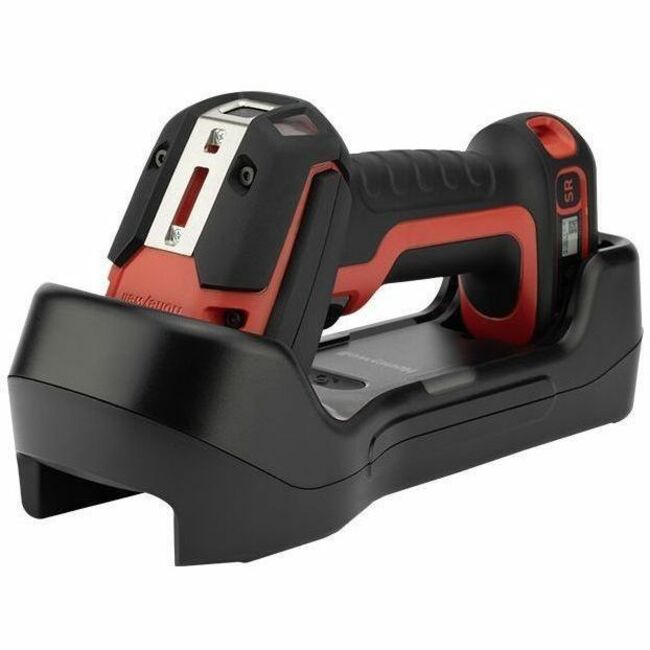

Honeywell GRANIT ULTRA 2105iXLR Barcode Scanner Kit - Cable/Wireless Connectivity - 98.43 ft Scan Distance - 1D, 2D - Laser - Imager - Area - Bluetooth, Radio Frequency - USB, Serial, Keyboard Wedge - Red - IP65, IP68 - USB Cable Included - Warehouse, Distribution, Manufacturing
- Allows productive and precise reading of 1D barcodes
- Regardless of angle orientation, the imager makes it easy to scan 1D and 2D barcodes
- With laser scanning technology you don't have to use any additional lighting as it works effectively in low ambient lighting conditions too
- With Bluetooth technology, you can scan barcodes and then transmit data from the base
General Information
| Manufacturer |
Honeywell International, Inc |
| Manufacturer Part Number |
2105IXLR-3USB-CLHN |
| Manufacturer Website Address |
http://www.honeywell.com |
| Brand Name |
Honeywell |
| Product Line |
Granit Ultra |
| Product Model |
2105iXLR |
| Product Name |
GRANIT ULTRA 2105iXLR Barcode Scanner Kit |
| Marketing Information |
Ultra-Rugged Cordless Area-Imaging Scanner
Granit Ultra scanners expand capabilities and define the next generation of ultra-rugged scanning.
ULTRA SCAN PERFORMANCE
For a scanner to optimize productivity, it should read and transmit common barcodes nearly as fast as the user can pull the trigger, and Granit Ultra is engineered to do just that. Granit Ultra integrates high speed processing, AI(Artificial Intelligence) algorithms, and decoding enhancements to result in an average 45% scanning speed increase vs. Granit XP1, enabling improved productivity
ULTRA DURABILITY
In modern warehouse, distribution center, and manufacturing environments, any scanner must be durable enough to survive harsh operating conditions. Under exactly that kind of rough treatment, Granit is ready to deliver.
ULTRA EASE OF USE
Ready to operate right out of the box for many applications, Granit offers easy custom configuration in the time it takes to scan a barcode. For further workflow improvement, Granit can also read multiple codes in the field of view, organizing and outputting the data in a predefined order using Honeywell's Data Format Editor
The all new charge and communication base is loaded with features to simplify common tasks. Easy drop-in charging makes scanner placement in the cradle fast and efficient for flat work surfaces; engaging the latching mechanisms helps ensure secure retention for vertical or vehicle mounting.
|
| Product Type |
Barcode Scanner Kit |
Technical Information
| Connectivity Technology |
Cable/Wireless |
| Scanning Capability |
1D |
| Scanning Capability |
2D |
| Barcode Symbology Supported |
1D:
- Code 39, code 128, code 93, code 11, code 32 Pharmaceutical, codabar, EAN, UPC, China Post, GS1 databar
2D:
- Aztec, Data Matrix, QR/Micro QR code, Maxicode, Chinese sensible (Han Xin) code, postal code, PDF417, DotCode
Digital Watermarking:
OCR:
- OCR A, OCR B, MICR E-13B and SEMI Font, in a 6 to 60 point OCR typeface
|
| Light Source |
Laser |
| Image Sensor Type |
Imager |
| Scan Mode |
Trigger |
| Scan Pattern |
Area |
| Scanner Range |
Ultra Long Range |
| Scanning Distance |
98.43 ft mm |
| Cable Type Included |
USB |
| Field of View (Horizontal) |
45° ° |
| Field of View (Vertical) |
14° ° |
| Reading Angle (Skew) |
65° ° |
| Reading Angle (Pitch) |
65° ° |
| Reading Angle (Roll) |
360° ° |
| Maximum Ambient Light |
100000 lux |
| Drop Specification |
- 3m (10 ft): MIL-STD-810G, 25° C (77° F), 55% relative humidity
- 2.5m (8.2 ft): 20 drops from -20° C to 50° C (4° F to 122° F), 55% relative humidity
- 2m (6.5 ft): 50 drops from -30° C to 50° C (-22° F to 122° F), uncontrolled relative humidity
|
| Minimum Print Contrast |
15% |
| Minimum Element Resolution (Code 39) |
5 mil mm |
| Maximum Element Resolution (Code 39) |
100 mil mm |
| Minimum Element Resolution (DataMatrix) |
10 mil mm |
| Maximum Element Resolution (DataMatrix) |
100 mil mm |
| Image Sensor Resolution |
1900 x 800 |
| Illumination Type |
LED |
| Illumination Color |
Green |
| Air Electrostatic Discharge (+/-) |
20kV |
| Contact Electrostatic Discharge (+/-) |
8kV |
| AI-powered |
Yes |
| Features |
Notification LED |
| Features |
Beep |
| Features |
Vibration |
| Features |
Ergonomic Design |
| Features |
Data Formatter |
Network & Communication
| Bluetooth |
Yes |
| Radio Frequency |
Yes |
Interfaces/Ports
| Host Interface |
USB |
| Host Interface |
Serial |
| Host Interface |
Keyboard Wedge |
Power Description
| Maximum Operating Power Consumption |
7.50 W |
| Standby Current |
120 mA |
Battery Information
| Battery Chemistry |
Lithium Ion (Li-Ion) |
| Battery Capacity |
3300 mAh |
| Maximum Battery Run Time |
14 Hour Second |
Environmental Conditions
| Operating Temperature |
-4°F (-20°C) to 122°F (50°C) °F |
| Storage Temperature |
-40°F (-40°C) to 158°F (70°C) °F |
| Humidity (Non-condensing) |
95% |
Physical Characteristics
| Form Factor |
Handheld |
| Rugged |
Yes |
| Color Family |
Red |
| Product Color |
Red |
| Durability |
Drop Resistant |
| Height |
5.5" mm |
| Width |
3" mm |
| Length |
7.7" mm |
| Weight (Approximate) |
14.99 oz g |
Miscellaneous
| Package Contents |
- GRANIT ULTRA 2105iXLR Barcode Scanner
- Battery (Battery-SCN11)
- USB Cable (CBL-500-300-S00)
- Horizontal Base(CCB23-100BT-07N)
|
| Ingress Protection (IP) Rating |
IP65 |
| Ingress Protection (IP) Rating |
IP68 |
| Application/Usage |
Warehouse |
| Application/Usage |
Distribution |
| Application/Usage |
Manufacturing |
| Environmental Compliance |
Restriction of Hazardous Substances (RoHS) |
Warranty
