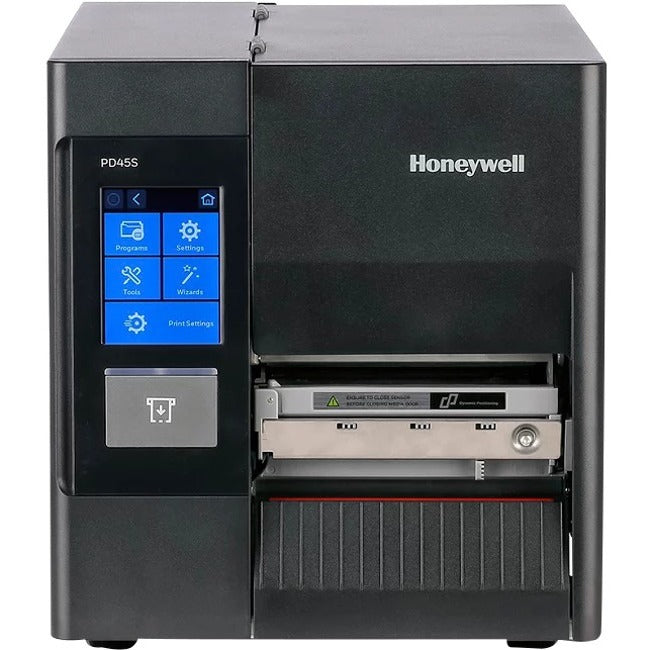

Honeywell PD45 Industrial, Retail, Healthcare, Manufacturing, Transportation & Logistic Thermal Transfer Printer - Monochrome - Label Print - Fast Ethernet - USB - USB Host - Serial - LCD Display Screen - 7.22" Print Length x 4.16" Print Width - 3.94 in/s Mono - 300 dpi - 4.49" Label Width - ZPL II, ZSim2, IPL, DPL, Direct Protocol (DP), Fingerprint Emulation - For PC
- Easy to operate. Supporting one-key driver installation and facilitating printer cleaning and parts replacement.
- Complete after-sales services. Honeywell Global Service Support can provide customers and partners with the best support and visiting service in the industry. Honeywell's services can improve the production efficiency, equipment reliability and uptime indicators.
- Rugged and Durable. Suitable for a large variety of working environments with all-metal frame structure.
- Excellent performance. Advanced industrial print head ensures high printing quality and durable.
- Dual sensor technology for excellent precision printing; also for auto-calibration feature, helps to reduce costs and improves efficiency
General Information
| Manufacturer |
Honeywell International, Inc |
| Manufacturer Part Number |
PD4500C0010000300 |
| Manufacturer Website Address |
http://www.honeywell.com |
| Brand Name |
Honeywell |
| Product Series |
PD |
| Product Model |
PD45 |
| Product Name |
Industrial Label Printer |
| Marketing Information |
The PD45 is Honeywell's new commercial grade industrial printer, which is suited for manufacturing, retail, transportation & logistics, health care, and government applications. The PD45 is available with standard features such as smart printing capability, in which users can configure and fine-tune settings without the need for a host computer by running apps right inside the printer - minimizing the need to connect to a PC. With Honeywell print platform that supports multiple print languages, PD45 can be an effective alternative to the competing printers available in the market. Uniquely designed using minimum internal mechanical parts and an all-metallic frame structure, PD45 is sturdy and durable. This gives our printer a tough, compact, and sleek appearance, suitable for use in a wide range of settings & applications. A large glass window design allows users to easily monitor the status of the printer and its consumables. A side opening makes it convenient for ribbon and paper loading.
The PD45 runs on Arm Cortex-A7 / 800Mhz processor, 128M memory and 128M DDR3 SDR AM. It features a sophisticated industrial print head which supports
both direct thermal and thermal transfer printing modes. Honey well's patented dual sensor positioning technology supports a dynamic positioning function that
ensures a minimum label height of 5mm and vertical position accuracy of 0.5mm. Two sets of adjustable pressure bars and a double media guides ensures accurate
paper feeding and help to avoid ribbon wrinkles & printing dirt.
Thanks to a very ergonomic design, the print head can be easily switched out and replaced. The front sensor that ensures accurate printing can also be easily removed to facilitate cleaning and replacement of the rubber roller. The PD45 supports multiple printer command languages such as FP/DP/IPL /ZPL /DPL, one-key installation of printer driver and easy windows configuration.
|
| Product Type |
Thermal Transfer Printer |
Technical Information
| Recommended Use |
Label Print |
| Print Color Capability |
Monochrome |
| Maximum Mono Print Speed |
3.94 in/s mm/s |
| Maximum Print Resolution (dpi) |
300 |
| Maximum Print Length |
7.22" mm |
| Maximum Print Width |
4.16" mm |
| Barcode Symbology Supported |
1D |
| Barcode Symbology Supported |
2D |
| Barcode Symbology Supported |
UPC/EAN Shipping Container |
| Barcode Symbology Supported |
UCC/EAN 128 Serial Shipping Container |
| Barcode Symbology Supported |
MH10.8 |
| Barcode Symbology Supported |
AIAG |
| Barcode Symbology Supported |
OGMARS |
| Barcode Symbology Supported |
POSTNET |
| Barcode Symbology Supported |
HIBCC |
| Barcode Symbology Supported |
ISBT-128 |
| Barcode Symbology Supported |
GM1724 |
| Character Sets |
WorldType Layout Engine (WTLE) |
| Application/Usage |
Industrial |
| Application/Usage |
Retail |
| Application/Usage |
Healthcare |
| Application/Usage |
Manufacturing |
| Application/Usage |
Transportation & Logistic |
| Features |
Ergonomic |
| Features |
Compact |
| Features |
Rugged |
| Features |
LCD Display |
Memory
| Standard Memory |
128 MB Byte |
Interfaces/Ports
| USB Host |
Yes |
| Serial Port |
Yes |
| USB |
Yes |
Network & Communication
| Network Ready |
Yes |
| Ethernet |
Yes |
| Ethernet Technology |
Fast Ethernet |
Display & Graphics
| Display Screen |
Yes |
| Display Screen Type |
LCD |
Media Types & Handling
| Media Type |
Label |
| Media Type |
Tag |
| Media Type |
Notch |
| Media Type |
Continuous Label |
| Media Type |
Continuous Paper |
| Media Sensor |
Black Mark Sensor |
| Media Sensor |
Gap Sensor |
| Media Thickness |
8.82 mil mm |
| Maximum Roll Diameter |
3.15" mm |
| Maximum Label Width |
4.49" mm |
Fonts & Emulation
| Language Emulation |
ZPL II |
| Language Emulation |
ZSim2 |
| Language Emulation |
IPL |
| Language Emulation |
DPL |
| Language Emulation |
Direct Protocol (DP) |
| Language Emulation |
Fingerprint |
Software
Power Description
Environmental Conditions
| Operating Temperature |
41°F (5°C) - 104°F (40°C) °F |
| Operating Relative Humidity |
20% - 85% |
| Storage Temperature |
-4°F (-20°C) - 158°F (70°C) °F |
Physical Characteristics
| Height |
10.6" mm |
| Width |
9.8" mm |
| Depth |
17.2" mm |
| Weight (Approximate) |
20.39 lb g |
Miscellaneous
| Optional Connectivity |
Wireless LAN |
| Platform Supported |
PC |
Warranty
