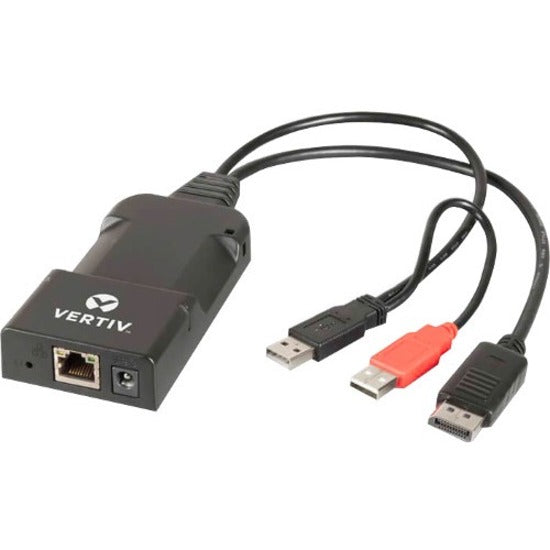

Vertiv HMX5160T-DVID AVOCENT 5160T Zero-U IP KVM Transmitter

Avocent® High Performance HMX 5150/5160T/6150T are zero-U transmitters that are part of the Avocent® HMX 5000/6000/8000 series system product line. These high performance, IP-based KVM (Keyboard, Video, Mouse) dongles can be used in either extender or matrix mode and enable the use of standard IT infrastructure to extend computers away from the user environment.

The Avocent HMX 5150T/5160T/6150T are backwards compatible with the existing Avocent HMX Advanced Manager and current Tx and Rx offerings. The 5150T/ 5160T offers resolution up to 1920x1200 @ 60Hz and is available with either VGA or DVI-D connectors. The 6150T supports up to 2K (2560x1600) @ 60Hz resolution via HDMI or DP and offers USB 2.0 True Emulation & High Speed.

• Zero-U form
• IP-based: use your existing network
• USB and low
• power consumption
• Supports video resolutions up to 2560 x 1600 @60Hz
• Easy retrofit into existing infrastructure
• Plug and play
• Available in DP, HDMI, DVI-D and VGA

Features | Zero-U Size

The Avocent HMX 5150T/6150T takes zero-U of rack space in the server room allowing for ultimate flexibility and ease of installation.

IP-Based

Use your existing networking infrastructure to extend or matrix your computing resources to your users.

USB and Low Power Consumption

Both the 5150T and 6150T family can be powered from USB which does not require an external PSU. Additionally, through the USB, these devises require less than 3 Watts; less than a quarter of the energy when compared with other solutions.

Multiple Video Options

The Avocent HMX 5150T/5160T supports resolutions up to 1920x1200@60H via VGA or DVI-D and the HMX6150T supports resolutions up to 2K (2560x1600) @ 60Hz via DP or HDMI.

USB 2.0

USB 2.0 enables you to connect any USB HID (human interface device) from mouse and keyboards through to graphics tablets, jog shuttles, joysticks and 3D explorers. The Avocent HMX 5160T and 6150T also support high speed devices such as USB hard drives.

Seamless Integration With The Avocent HMX 5000/6000/8000 Series

The Avocent HMX 5150T/5160T/6150T can integrate seamlessly into your existing Avocent HMX 5000/6000/8000 Series setup, replacing or working in conjunction with your existing Avocent HMX endpoints.

EDID Management

The Avocent HMX 5150T/5160T/6150T has intelligent EDID management to either allow the true characteristics of the monitor to be passed back to the computer, or controlled resolutions to be imposed.

Digital KVM Matrix

With the addition of an Avocent HMX Advanced Manager, you can turn multiple point-to-point extenders into a fullymatrixed KVM solution that enables any workstation to connect to any authorized computer in the system.
