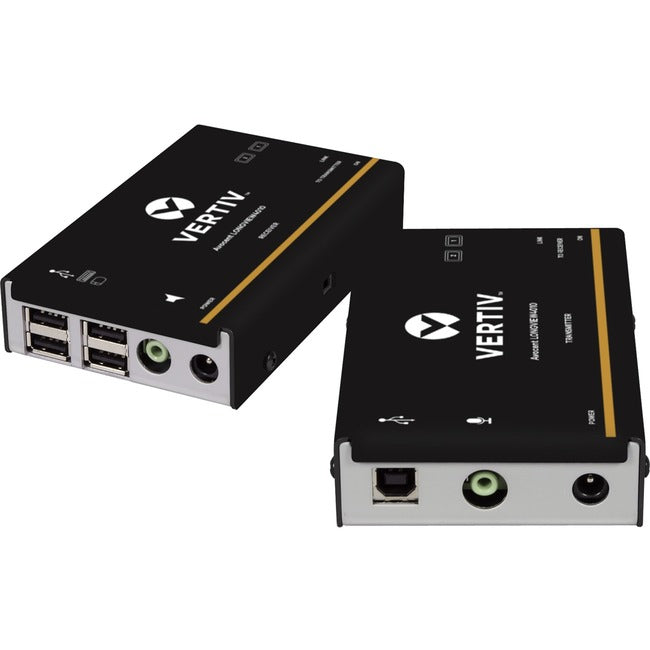

Vertiv LV4010P-001 Avocent LV 4000 Series High Quality KVM Extender Kit with Receiver & Transmitter

Name: Vertiv LV4010P-001 Avocent LV 4000 Series High Quality KVM Extender Kit with Receiver & Transmitter
Brand: Vertiv
SKU: LV4010P-001
Price: 1586.08 USD
Availability: InStock

Part Number:

LV4010P-001

4 pieces ready to ship - additional units ship in 7-10 business days.

Estimated shipping in 7–10 business days.

Ready to ship.

4 pieces ready to ship - additional units ship in 7-10 business days.

$1,586.08

USD + Applicable Tax

Avocent LV 4000 Series High Quality KVM Extender Kit with Receiver & Transmitter - LongView, Single Display, 1900x1200 DVI-D, USB, Audio, 50m Extender

KVM EXTENDER: Delivers seamless KVM control while moving computing assets away from the workspace to secure, climate-controlled environments
USB POWERED TRANSMITTER: Supports VGA transmission common to many computer monitors and also supports isochronous USB devices, such as webcams, USB audio and touchscreens.
PURCHASE INCLUDES: Includes 1x transmitter and 1x receiver, 2x VGA cables, 1x 3.5 mm audio cable, 2x USB B to A cables, and 2x power supplies with power cords.
PRECISION VIDEO: Provides high-resolution (1920x1200) video images and high-quality audio for single and multi-screen desktops
LOCAL FEED THROUGH PORT: Desktop pass-through port allows use of a local console. Also features plug-and-play design with no drivers or software to install, and no on-site configuration required.

General Information

Manufacturer	Vertiv
Manufacturer Part Number	LV4010P-001
Manufacturer Website Address	http://www.vertiv.com/
Brand Name	Vertiv AVOCENT
Product Line	LV
Product Series	4000
Product Model	LV4010
Product Name	LV4010 Single VGA KVM Extender
Marketing Information	The Vertiv Avocent LongView LV4010P KVM extender is part of the Avocent high-performance family of KVM extension solution products. The LV4010P KVM extender allows users to distribute a single-link DVI video stream, USB 2.0, and analog audio over a single CATx cable. The LV4010 transmits and delivers perfect 1080p digital video at distances over 164 feet (50 meters) and resolutions up to 164 MPixels per second (such as 1920x1200 @ 60Hz or 3840x2400 @ 17Hz). Locate critical computing hardware in a secure and temperature-controlled environment, away from the user's workstation environment, while maintaining the same user experience. In operation, the LongView 4010 is truly plug and play, delivering full Extended Display ID (EDID) data from computer to screen ensuring your hardware is always setup to deliver optimal display performance. More from the Manufacturer
Packaged Quantity	1
Product Type	KVM Console/Extender

Technical Information

Connectivity Technology	Wired
Number of Computers Supported	1
Number of Local Users Supported	1
Maximum Operating Distance	1000 ft mm
Device Type	High Performance KVM

Video

Graphic Mode	WUXGA
Maximum Video Resolution	1920 x 1200

Interfaces/Ports

USB	Yes
DVI	Yes
Number of USB Ports	4
Number of DVI Ports	1

Power Description

Input Voltage	120 V AC
Input Voltage	240 V AC
Input Voltage Range	100V AC to 240V AC
Power Consumption	12.50 W

Physical Characteristics

Rack Height	3U
Form Factor	Rack-mountable
Transmitter Height	1" mm
Transmitter Width	4.70" mm
Transmitter Depth	3" mm
Receiver Height	1" mm
Receiver Width	4.70" mm
Receiver Depth	3" mm
Transmitter Weight (Approximate)	11.20 oz g
Receiver Weight (Approximate)	11.20 oz g

Miscellaneous

Country of Origin

United Kingdom

Warranty

Limited Warranty

2 Year
