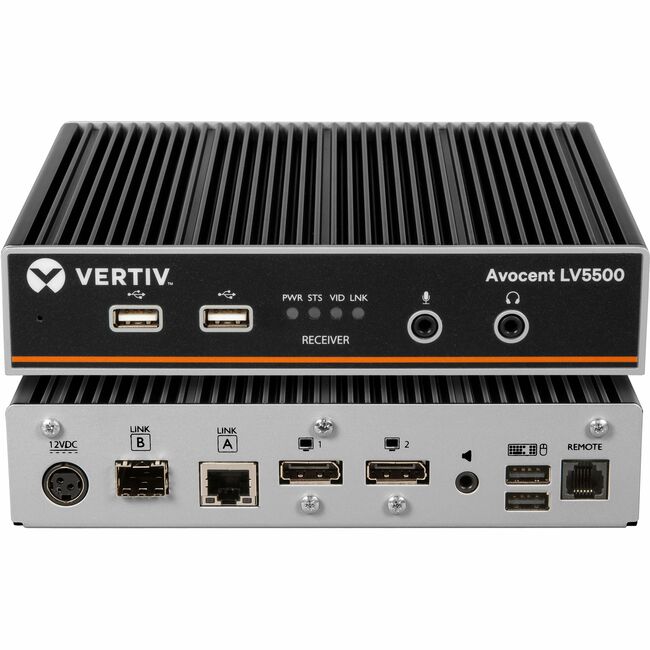

Vertiv LV5500R-400 Avocent LV5500 High-Performance KVM Extender | Receiver

100% Genuine

Manufacturer Warranty

Fast US Shipping

Vertiv LV5500R-400 Avocent LV5500 High-Performance KVM Extender | Receiver

Part Number:

LV5500R-400

40 pieces ready to ship - additional units ship in 7-10 business days.
Estimated shipping in 7–10 business days.
Estimated shipping in 7–10 business days.
Ready to ship.

40 pieces ready to ship - additional units ship in 7-10 business days.

$1,558.48

USD + Applicable Tax
Visa
Mastercard
American Express
PayPal
Shop Pay

Vertiv Avocent LV5500 High-Performance KVM Extender | Receiver - High-Performance KVM Extender | 4K 60Hz | Single Head | Dual Head | Single Port KVM | 2 Port KVM | 4 Port KVM | 4K DisplayPort | USB 2.0 | True USB Emulation | DVI KVM Switch | Fiber Optic | High Resolution Display

  • Delivers seamless KVM control and 4k video transmission.
  • Allows for greater distance with the Fiber Option.
  • Provides ultra-high-resolution video images for single-monitor and high-res video for dual-head.
  • Plug-and-play with no drivers or software to install, and no on-site configuration required.
  • Faster throughput with updated USB.

General Information

Manufacturer Vertiv
Manufacturer Part Number LV5500R-400
Manufacturer Website Address http://www.vertiv.com/
Brand Name Vertiv AVOCENT
Product Line LongView
Product Series 5000
Product Model LV5500R
Product Name LV5500 High-Performance KVM Extender | Receiver
Marketing Information The Vertiv Avocent LongView 5500 Receiver (LV5500R) is the latest in the Avocent high-performance family of products. Coupled with the Avocent LV5500T, the LV5500R is a point-to-point high performance KVM extender that provides 24-bit color graphics over a single head up to 4K@60Hz. Along with providing real-time access, local port pass through, and HD analog audio, the LV5500R provides an effortless and automatic connection for up to two users, local and remote, over the IP network without the need for extensive manual setup. Increase business security with signed upgrade files and firmware updates from a single USB flash drive. The LV5500R is ideal for broadcasting, control centers, and other industries requiring high performance, 4K video.

More from the Manufacturer
Packaged Quantity 1
Product Type KVM Extender Receiver

Technical Information

Connectivity Technology Wired
KVM Technology Digital
Number of Computers Supported 1
Number of Local Users Supported 1
Number of Remote Users Supported 1
Maximum Operating Distance 13123.36 ft mm
Device Type High Performance KVM

Video

Graphic Mode 4K
Maximum Video Resolution 4096 x 2160

Interfaces/Ports

Network (RJ-45) Yes
PS/2 Port No
USB Yes
DVI No
Headphone Yes
Microphone Yes
HDMI No
VGA No
DisplayPort Yes
Proprietary Interface No
Number of HDMI Ports 0
Number of VGA Ports 0
Number of Network (RJ-45) Ports 1
Number of PS/2 Ports 0
Number of USB Ports 2
Number of DVI Ports 0

Power Description

Input Voltage 120 V AC
Input Voltage 230 V AC
Input Voltage Range 100-240 VAC
Power Consumption 18 W

Physical Characteristics

Color Family Black
Product Color Black
Rack Height 1U
Form Factor Rack-mountable
Receiver Height 1.54" mm
Receiver Width 7.32" mm
Receiver Depth 5.83" mm
Receiver Weight (Approximate) 2.73 lb g

Miscellaneous

Package Contents
  • LV5500 High-Performance KVM Extender | Receiver
  • 1 x LV5500 Extender Quick Installation Guide
  • 1 x Extender RMK Quick Installation Guide
  • 1 x Compliance/Safety Sheet (See PLM BOM) 1 each
  • 1 x Customer Support/Warranty Card (See PLM BOM)
  • 1 x 3.5mm stereo plug to plug audio cable, 3meter
  • 1 x USB cable, Type A to Type B, 1.8meter
  • 1 x DisplayPort cable, M-M, High Bit-Rate, 2meter
  • 1 x Power supply: HK-AB-050A400-D56 or HK-25-AB-050A400-D56
  • 1 x China RoHS Declaration
  • 1 x Vertiv document wallet
Platform Supported PC
Platform Supported Unix
Platform Supported Mac
Platform Supported Sun
Platform Supported Linux
Environmentally Friendly Yes
Environmental Compliance China Restriction of Hazardous Substances (China RoHS)
Country of Origin United Kingdom
TAA Compliant Yes

Warranty

Limited Warranty 2 Year
