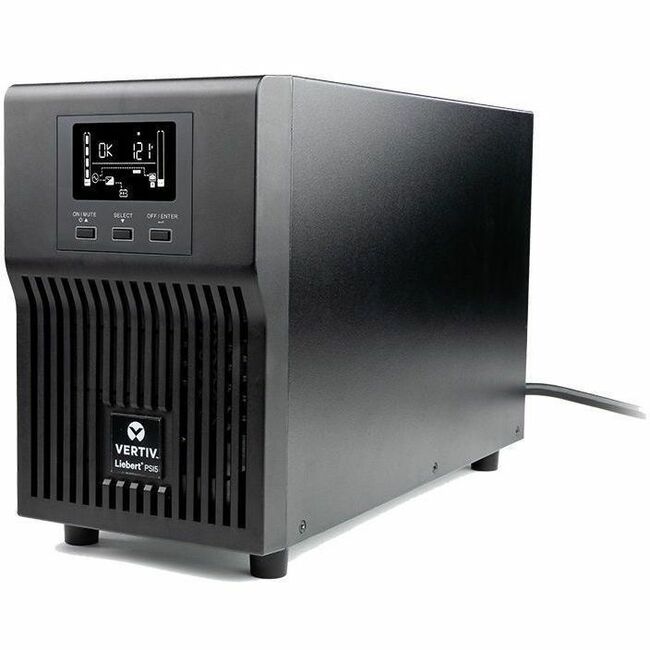

Vertiv Liebert PSI5-750MT120N 750VA Mini-Tower Model - Mini-tower, Compact - AVR - 8 Hour Recharge - 120 V AC Input - 100 V AC, 110 V AC, 115 V AC, 120 V AC, 125 V AC Output - Pure Sine Wave - USB - 3 x NEMA 5-15R, 2 x NEMA 5-15R Receptacle(s) - 5 x Battery/Surge Outlet - Network Card, RDU120/Webcard
- Works adequately in situations where the supply is prone to sags and surges
- Prevent critical data loss by staying powered during a blackout with up to 675 W load capacity
- 750 VA load capacity provides sufficient backup during power failures
- Overload protection feature effectively prevents motor damage by monitoring the current in the motor circuit and breaking the circuit when an electrical overload is detected
- 2 batteries for optimal performance with maximum usability
- 12V battery size for better reliance and dependable usability
- 9000 mAh battery capacity for convenient and prolonged usage to ensure maximum productivity
- 8 Hour typical battery recharge time to allow optimal performance for longer hours with added efficiency
- Replaceable battery for optimal performance with maximum charged dependability
- Lead Acid battery chemistry to better suit your requirements with maximum productivity
General Information
| Manufacturer |
Vertiv |
| Manufacturer Part Number |
PSI5-750MT120N |
| Manufacturer Website Address |
http://www.vertiv.com/ |
| Brand Name |
Vertiv Liebert |
| Product Series |
PSI5 |
| Product Model |
PSI5-750MT120N |
| Product Name |
PSI5-750MT120N 750VA Mini-Tower Model |
| Marketing Information |
Liebert® PSI5 is a compact, Automatic Voltage Regulation (AVR) line-interactive UPS system designed especially for IT applications such as network closets and small data centers.
The Liebert PSI5 UPS supports advanced pure sine wave output on battery to safeguard critical IT equipment and business electronics. It also provides reliable power protection for servers, critical nodes, network workstations, large network peripherals, network routers, bridges, and other electronic equipment. With 3 different form-factors available, the Liebert PSI5 has been designed to ensure power continuity for a wide array of applicaitons
|
| Packaged Quantity |
1 Each |
| Product Type |
Line-interactive UPS |
Technical Information
| AVR |
Yes |
| Receptacle Type |
NEMA 5-15R |
| Receptacle Detail |
3 x NEMA 5-15R |
| Receptacle Detail |
2 x NEMA 5-15R |
| Number of Load Management Outlets |
2 |
| Number of Battery & Surge Outlets |
5 |
| Number of Surge-only Outlets |
0 |
| Number of Critical Load Outlets |
5 |
| Dataline Protection |
RJ-45 |
| Overload Protection |
Yes |
| Cord Length |
6 ft mm |
| Transfer Time |
13 ms Second |
| Application/Usage |
IT |
| Application/Usage |
Network Closet |
| Application/Usage |
Data Center |
| Application/Usage |
IT Equipment |
| Application/Usage |
Business |
| Application/Usage |
Server |
| Application/Usage |
Network Workstation |
| Application/Usage |
Large Network Peripheral |
| Application/Usage |
Network Router |
| Application/Usage |
Network Bridge |
| Application/Usage |
Electronic Equipment |
| Application/Usage |
Safety |
| Application/Usage |
Security System |
| Application/Usage |
Storage |
| Application/Usage |
VoIP |
| Application/Usage |
Media Closet |
| Application/Usage |
POS |
| Application/Usage |
Mission Critical Equipment |
| Surge Suppression |
Yes |
| Features |
Self Test |
| Features |
Audible/Visual Alarm |
Power Description
| Load Capacity (VA) |
750 VA W |
| Load Capacity (Watt) |
675 W |
| Input Voltage |
120 V AC |
| Input Voltage Range |
0 V AC - 150 V AC |
| Output Voltage |
100 V AC |
| Output Voltage |
110 V AC |
| Output Voltage |
115 V AC |
| Output Voltage |
120 V AC |
| Output Voltage |
125 V AC |
| Input Frequency |
55 Hz |
| Input Frequency |
57 Hz |
| Input Frequency |
63 Hz |
| Input Frequency |
65 Hz |
| Output Frequency |
60 Hz |
| Waveform Type |
Pure Sine Wave |
| Circuit Breaker |
Yes |
| Output Power Factor |
0.9 |
Management
| Network Management |
Network Card |
| Network Management |
SNMP/Webcard |
| Network Management |
Intelligent Card Slot |
Interfaces/Ports
| USB |
Yes |
| Network (RJ-45) |
Yes |
| EPO Port |
Yes |
Battery Information
| Number of Batteries |
2 |
| Battery Characteristics |
Valve-regulated |
| Battery Chemistry |
Lead Acid |
| Battery Size |
12V |
| Battery Capacity |
9000 mAh |
| Hot Swappable |
Yes |
| Typical Battery Recharge Time |
8 Hour Second |
| Replaceable Battery |
Yes |
Environmental Conditions
| Maximum Operating Elevation |
9842.52 ft mm |
| Storage Temperature |
-5°F (-20.6°C) - 122°F (50°C) °F |
| Minimum Operating Temperature |
32°F (0°C) °F |
| Maximum Operating Temperature |
104°F (40°C) °F |
Physical Characteristics
| Height |
8.70" mm |
| Width |
5.70" mm |
| Depth |
14.80" mm |
| Form Factor |
Mini-tower |
| Form Factor |
Compact |
| Weight (Approximate) |
24.70 lb g |
Miscellaneous
| Package Contents |
- PSI5-750MT120N 750VA Mini-Tower Model
- USB Type A to USB Type B cable 1.8 meter (6ft) in length
- Printed quick start guide with safety instructions
- Vertiv Power Insight Management software (free download from Vertiv.com)
- Vertiv Liebert RDU120 Network Card
|
| Software Included |
Vertiv Power Insight Management software |
| Energy Star |
Yes |
