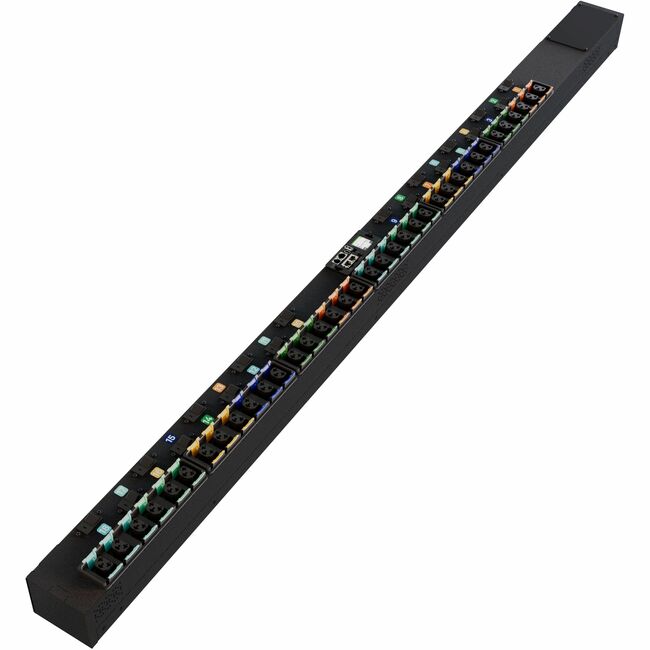

Vertiv VP7UA0A0 PowerIT VP7UA0A0 Switched Outlet Level Monitoring HD rPDU, Vertical, Three Phase, 36 Combination C13/C19 Outlets, 80A, 240/415V WYE, 0U

100% Genuine

Manufacturer Warranty

Fast US Shipping

Vertiv VP7UA0A0 PowerIT VP7UA0A0 Switched Outlet Level Monitoring HD rPDU, Vertical, Three Phase, 36 Combination C13/C19 Outlets, 80A, 240/415V WYE, 0U

Part Number:

VP7UA0A0

1 pieces ready to ship - additional units ship in 7-10 business days.
Estimated shipping in 7–10 business days.
Estimated shipping in 7–10 business days.
Ready to ship.

1 pieces ready to ship - additional units ship in 7-10 business days.

$5,187.88

USD + Applicable Tax
Visa
Mastercard
American Express
PayPal
Shop Pay

Vertiv PowerIT VP7UA0A0 Switched Outlet Level Monitoring HD rPDU, Vertical, Three Phase, 36 Combination C13/C19 Outlets, 80A, 240/415V WYE, 0U - Rack power distribution unit, 57.6kW, hardwired input plug, TAA Compliance, RoHS, China RoHS, UL-listed, CE-marked 3-year warranty extending to 5-year warranty if registered within 120 days of purchase

  • Seamlessly upgrade your rPDU with the hot-swappable Interchangeable Monitoring Device (IMD-5M)
  • Connect both C14 and C20 plugs interchangeably via the Combination C13/C19 receptacle
  • Secure connections with the high-retention, color-coded receptacle that is P-Lock cable-compatible
  • Streamline deployment of up to 50 devices on a single IP address with Vertiv Intelligence Director
  • Comes with a three-year warranty, extendable to five years if registered within 120 days of purchase

General Information

Manufacturer Vertiv
Manufacturer Part Number VP7UA0A0
Manufacturer Website Address http://www.vertiv.com/
Brand Name Vertiv Geist
Product Line Geist Upgradeable
Product Series G
Product Name Switched Outlet Level Monitoring VP7UA0A0 PDU
Marketing Information The Vertiv PowerIT Switched Outlet Level Monitored High Density Rack Power Distribution Unit (rPDU) VP7UA0A0 is an upgradeable, 80A, 240/415V WYE, 0U, vertical rPDU with input monitoring and outlet level monitoring and switching. It has 36 Combination C13/C19 outlets that provide the flexibility to connect C14 and C20 plugs in the same outlet interchangeably. This unit also has a hardwired input plug providing 57.6kW of power capacity. This model allows you to turn off outlets to avoid accidental overloads and remotely power cycle equipment to reboot unresponsive critical IT equipment. The hot-swappable Interchangeable Monitoring Device (IMD-5M) has ports for serial communication and environmental monitoring, while the dual gigabit ethernet ports simplify the management of multiple PDUs with fault-tolerant daisy chaining or IP aggregation capabilities. Plus, it includes a three-year warranty that is extendable to five years if registered within 120 days of purchase.

More from the Manufacturer
Product Type PDU

Technical Information

PDU Type Switched Outlet Monitored
Phase Three Phase
Plug/Connector Type Hardwired
Receptacle Type Combination C13/C19
Receptacle Detail 36 x Combination C13/C19
Protection Type Overcurrent Protection
Features LCD Display
Features Touch Screen Display

Power Description

Input Voltage 230 V AC
Input Voltage 415 V AC
Output Voltage 240 V AC
Power Rating (Watt) 57.60 kW
Input Current 80 A

Management

Management
  • DHCP
  • HTTP
  • HTTPS
  • IPv4
  • IPv6
  • LDAP
  • NTP
  • RADIUS
  • RSTP
  • SSH
  • SMTP
  • SNMP (v1/v2c/v3)
  • Syslog
  • TACACS+
Remote Outlet Switching Yes

Interfaces/Ports

Network (RJ-45) Yes

Physical Characteristics

Color Family Black
Product Color Black
Mounting Orientation Vertical
Mount Type Rack-mountable
Form Factor Rack
Rack Height 0U
Width 3.8" mm
Depth 3" mm
Length 66.3" mm

Miscellaneous

Application/Usage IT Equipment
Country of Origin United States
TAA Compliant Yes
Environmental Compliance China Restriction of Hazardous Substances (China RoHS)
Environmental Compliance Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty 5 Year
Additional Warranty Information 5-year limited warranty if registered within 120 days of purchase, otherwise warranty defaults to 3 years
